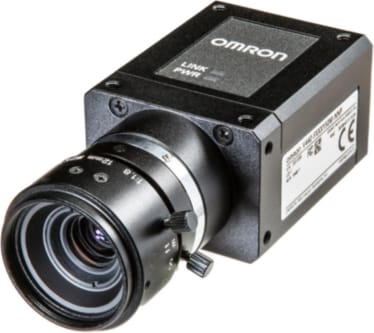

V440-F High Resolution C-Mount Code Reader
The V440-F is a high speed, high resolution, C-mount code reader with Weblink 3.0 browser based user-interface.
The V440-F C-mount code reader's flexible optics ensure maximum positioning for the most challenging symbols, and direct part marks using high-performance algorithms. A high power dual-core processor, advanced functionality and the ability to read up to 400 codes in a single field, enable this multi code reader to be ideal for wide area, long distance or small code reading applications.
- 5 MP global shutter sensor
- C-Mount lens compatible
- Dual-core processor
- High-speed, 36 FPS image acquisition
- Weblink 3.0 with enhanced functionality, including Matrix Mode and new Configuration Database
- Available with standard “P-Mode” or advanced “X-Mode” decode algorithms
- Designed for use with NERLITE Smart Series ring lights
- Power over Ethernet (PoE) or direct 24VDC
- Opto-isolated digital I/O
- Gigabit Ethernet with Locking RJ45 port for use with industrial Cables or Standard low-cost cabling
- RS232C, Ethernet, EtherNet/IP and PROFINET communications
- IP40 rating
Technical Specifications
| Type | Industrial Ethernet Barcode Reader |
| Code Type | 2D and 1D Codes |
| Decoder | 1D/2D Decoder |
| 2D Code Symbologies Supported | QR Code, Data Matrix (ECC 0-200), Micro QR Code, Aztec Code, DotCode, DMRE |
| Bar Code Symbologies Supported | PDF417, MicroPDF417, GS1 Databar (Composite and Stacked), Code 39, Code 128, BC412, Interleaved 2 of 5, UPC/EAN, Codabar, Code 93, Pharmacode, PLANET, POSTNET, Japanese Postal, Australia Post, Royal Mail, Intelligent Mail, KIX |
| Light Source | External Lighting |
| Connection | RS-232*,Ethernet TCP/IP,EtherNet/IP,USB*,PROFINET |
| I/O | 3 In/ 3 Out |
| Supply Voltage | 24 VDC & Power over Ethernet (44-57 VDC) |
| Mounting | Fixed mount |
| Enclosure Rating | IP40 |
| Sensor | 5MP, Global Shutter, Mono |
| Optics | C-Mount |
| Speed | High Speed |
