1SVR320361R1000
Weight
0.658 kg

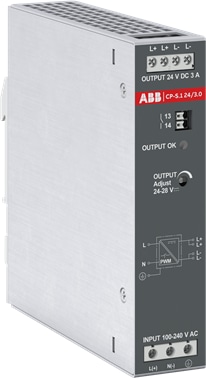

The CP-S.1 24/3.0 is a power supply from the new generation CP-S.1 range. The primary switch mode power supply offers a wide range input of 85-264 V AC and 90-277 V DC, rated input voltage is 100-240 V AC, respectively 100-250 V DC. The rated output power is 72 W, rated output current is 3 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 24 to 28 V DC. The power supply provides a U/I output characteristic with a power reserve of up to 150 % for 5 s and allows parallel operation to increase capacity and to enable redundancy. Redundancy unit and buffer modules are available as accessories.
Technical Specifications
Dimensions
| Product Net Width | 30.5 mm |
| Product Net Height | 129.4 mm |
| Product Net Depth / Length | 127 mm |
| Product Net Weight | 0.55 kg |
Technical
| Function | Switch mode power supply |
| Number of phases | 1 |
| Rated Input Voltage (UIN) | 100 ... 240 V AC |
| Rated Input Voltage (UIN) | 100 ... 250 V DC |
| Input Voltage (Uin) | 85 ... 264 V AC |
| Input Voltage (Uin) | 90 ... 277 V DC |
| Typical Input Current | (115 V AC) 1.38 A |
| Typical Input Current | (230 V AC) 0.95 A |
| Hold-up Time | (230 V AC) min. 20 ms |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Frequency (f) | DC |
| Rated Frequency Limits | 45 ... 65 Hz |
| Characteristic of Output | U/I characteristic curve with power reserve |
| Rated Output Power | 72 W |
| Output Power | 72 W |
| Rated Output Voltage | 24 V DC |
| Output Voltage (Uout) | 24 V DC |
| Output Current | 3 A |
| Output Current Maximum (Iout) | 4.5 A |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit / Output Circuit 4 kV |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit / PE 4 kV |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit / Relay Contact 4 kV |
| Rated Impulse Withstand Voltage (Uimp) | Output Circuit / PE 0.8 kV |
| Rated Impulse Withstand Voltage (Uimp) | Output Circuit 0.8 kV |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 300 V |
| Rated Insulation Voltage (Ui) | Input Circuit / PE 300 V |
| Rated Insulation Voltage (Ui) | Input Circuit / Relay Contact 300 V |
| Rated Insulation Voltage (Ui) | Output Circuit / PE 50 V |
| Degree of Protection | Housing IP20 |
| Degree of Protection | Terminals IP20 |
| Pollution degree | 2 |
| Connecting Capacity Input Circuit | Flexible with Ferrule 0.5 ... 2.5 mm² |
| Connecting Capacity Input Circuit | Flexible 0.5 ... 2.5 mm² |
| Connecting Capacity Input Circuit | Rigid 0.5 ... 2.5 mm² |
| Connecting Capacity Output Circuit | Flexible with Ferrule 0.5 ... 2.5 mm² |
| Connecting Capacity Output Circuit | Flexible 0.5 ... 2.5 mm² |
| Connecting Capacity Output Circuit | Rigid 0.5 ... 2.5 mm² |
| Tightening torque | Input Circuit 0.5 N·m |
| Tightening torque | Output Circuit 0.5 N·m |
| Wire Stripping Length | Auxiliary Circuit 7 mm |
| Wire Stripping Length | Input Circuit 9 mm |
| Wire Stripping Length | Output Circuit 9 mm |
| Minimum Mounting Distance | Other Device Same Type, Horizontal 30 mm |
| Minimum Mounting Distance | Other Device Same Type, Vertical 50 mm |
| Mounting Position | 1 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
Technical UL/CSA
| Connecting Capacity Input Circuit UL/CSA | Flexible with Ferrule 20-14 AWG |
| Connecting Capacity Input Circuit UL/CSA | Flexible 20-14 AWG |
| Connecting Capacity Input Circuit UL/CSA | Rigid 20-14 AWG |
| Connecting Capacity Output Circuit UL/CSA | Flexible with Ferrule 20-14 AWG |
| Connecting Capacity Output Circuit UL/CSA | Flexible 20-14 AWG |
| Connecting Capacity Output Circuit UL/CSA | Rigid 20-14 AWG |
| Tightening Torque UL/CSA | Input Circuit 4.4 in·lb |
| Tightening Torque UL/CSA | Output Circuit 4.4 in·lb |
Electromagnetic Compatibility
| Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2 | Level 4 Air Discharge 15 kV |
| Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2 | Level 4 Contact Discharge 8 kV |
| Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3 | Level 3 10 V/m |
| Surge Immunity acc. to IEC 61000-4-5 | Level 4 Line-to-Ground 4 kV |
| Surge Immunity acc. to IEC 61000-4-5 | Level 4 Line-to-Line 2 kV |
| Electromagnetic Compatibility (EMC) | Immunity - Class B |
| Electromagnetic Compatibility (EMC) | Emission - Class B |
