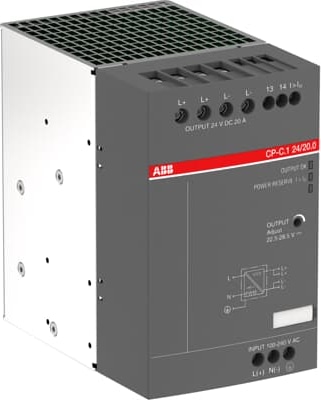

The CP-C.1 24/20.0-C is a power supply from the CP-C.1 range with coated PCBA. The primary switch mode power supply offers a wide range input of 85-264 V AC and 90-300 V DC, rated input voltage is 110-240 V AC. The rated output power is 480 W, rated output current is 20 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 22.5 to 28.5 V DC. The power supply provides a U/I output characteristic with a power reserve of up to 30 % and allows parallel operation to increase capacity and to enable redundancy. ATEX and IECEx approvals are available to be used in hazardous area applications. Further features are: power factor correction acc. to EN 61000-3-2. Redundancy unit and buffer modules are available as accessories
Technical Specifications
Dimensions
| Product Net Width | 82 mm |
| Product Net Height | 129.4 mm |
| Product Net Depth / Length | 136 mm |
| Product Net Weight | 1.59 kg |
Technical
| Function | Switch mode power supply |
| Number of phases | 1 |
| Rated Input Voltage (UIN) | 100 ... 240 V AC |
| Rated Input Voltage (UIN) | 90 ... 300 V DC |
| Input Voltage (Uin) | 85 ... 264 V AC |
| Input Voltage (Uin) | 90 ... 300 V DC |
| Typical Input Current | (115 V AC) 4.6 A |
| Typical Input Current | (230 V AC) 2.3 A |
| Hold-up Time | (230 V AC) min. 40 ms |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Frequency Limits | 45 ... 65 Hz |
| Characteristic of Output | U/I characteristic curve with power reserve |
| Rated Output Power | 480 W |
| Output Power | 480 W |
| Rated Output Voltage | 24 V DC |
| Output Voltage (Uout) | 24 V DC |
| Rated Output Current | -25 °C ... +60 °C 20 A |
| Rated Output Current | -40 °C ... +40 °C 26 A |
| Output Current | 20 A |
| Output Current Maximum (Iout) | 26 A |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit / Output Circuit 4 kV |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit / PE 4 kV |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit / Relay Contact 4 kV |
| Rated Impulse Withstand Voltage (Uimp) | Output Circuit / PE 0.5 kV |
| Rated Impulse Withstand Voltage (Uimp) | Output Circuit 0.5 kV |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 300 V |
| Rated Insulation Voltage (Ui) | Input Circuit / PE 300 V |
| Rated Insulation Voltage (Ui) | Input Circuit / Relay Contact 300 V |
| Rated Insulation Voltage (Ui) | Output Circuit / PE 50 V |
| Degree of Protection | Housing IP20 |
| Degree of Protection | Terminals IP20 |
| Pollution degree | 2 |
| Connecting Capacity Input Circuit | Flexible with Ferrule 0.5 ... 2.5 mm² |
| Connecting Capacity Input Circuit | Flexible 0.5 ... 2.5 mm² |
| Connecting Capacity Input Circuit | Rigid 0.5 ... 4 mm² |
| Connecting Capacity Output Circuit | Flexible with Ferrule 2.5 ... 10 mm² |
| Connecting Capacity Output Circuit | Flexible 2.5 ... 10 mm² |
| Connecting Capacity Output Circuit | Rigid 2.5 ... 16 mm² |
| Tightening torque | Auxiliary Circuit 0.5 N·m |
| Tightening torque | Input Circuit 0.5 N·m |
| Tightening torque | Output Circuit 1.2 N·m |
| Wire Stripping Length | Auxiliary Circuit 8 mm |
| Wire Stripping Length | Input Circuit 8 mm |
| Wire Stripping Length | Output Circuit 10 mm |
| Recommended Screw Driver | Input Circuit / Output Circuit PH1 |
| Recommended Screw Driver | Input Circuit / Output Circuit 0.8 x 4 |
| Minimum Mounting Distance | Electrical Conductive Board, Horizontal 25 mm |
| Minimum Mounting Distance | Electrical Conductive Board, Vertical 25 mm |
| Minimum Mounting Distance | Other Device Same Type, Horizontal 25 mm |
| Minimum Mounting Distance | Other Device Same Type, Vertical 25 mm |
| Mounting Position | Position 1 |
| Mounting Position | 7 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.107.1 |
| Standards | IEC/EN 63000 |
| Standards | IEC/EN 60079-0 |
| Standards | IEC/EN 60079-15 |
| Standards | IEC/EN 60079-7 |
| Standards | IEC/EN 61000-6-2 |
| Standards | IEC/EN 61000-6-3 |
| Standards | IEC/EN 61204 |
| Standards | UL 508 |
| Standards | UL 61010-1 |
| Standards | UL 61010-2-201 |
| Standards | IEC/EN 61010-1 |
Technical UL/CSA
| Connecting Capacity Input Circuit UL/CSA | Flexible with Ferrule 20-12 AWG |
| Connecting Capacity Input Circuit UL/CSA | Flexible 20-12 AWG |
| Connecting Capacity Input Circuit UL/CSA | Rigid 20-10 AWG |
| Connecting Capacity Output Circuit UL/CSA | Flexible 12-8 AWG |
| Connecting Capacity Output Circuit UL/CSA | Rigid 12-6 AWG |
| Tightening Torque UL/CSA | Input Circuit 4.4 in·lb |
| Tightening Torque UL/CSA | Output Circuit 10.5 in·lb |
Electromagnetic Compatibility
| Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2 | Level 4 Air Discharge 15 kV |
| Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2 | Level 4 Contact Discharge 8 kV |
| Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3 | Level 3 10 V/m |
| Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4 | Level 4 Power Supply Port Signal 4 kV |
| Surge Immunity acc. to IEC 61000-4-5 | Level 4 Line-to-Ground 4 kV |
| Surge Immunity acc. to IEC 61000-4-5 | Level 4 Line-to-Line 2 kV |
| Conducted Disturbances Immunity acc. to IEC 61000-4-6 | Level 3 10 V |
| Electromagnetic Compatibility (EMC) | Immunity - Class B |
| Electromagnetic Compatibility (EMC) | Emission - Class B |
