Official DistributorBy Omron
SKU
Monitoring relay 22.5mm wide, temperature monitoring, 24 VAC/VDC, one SPDT
Documents

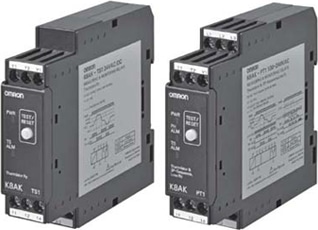

K8AK-TS Thermistor Motor Protection Relays
Slim-line relays monitor three-phase motor temperature, phase sequence and phase loss.
K8AK-TS relays monitor the temperature of the motor's thermal protection. K8AK-PT monitors temperature, phase sequence and phase loss for 3-phase, 3-wire motors in one unit.
- Specially designed for internal motor monitoring: no setting required
- Test/Reset button for confirmation of output operation
- Reset operation: automatic or manual
- Robust operating temperature: -20 to 60 ⁰C
- 22.5 mm (w) body
- External Teset/rest button
- Selectable reset feature
Why Proax for Omron K8AK-TS1 24 VAC/VDC?
Proax is an authorized distributor of Omron K8AK-TS1 24 VAC/VDC. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | K8AKTS124VACVDC |
| Pack Size | 1 |
