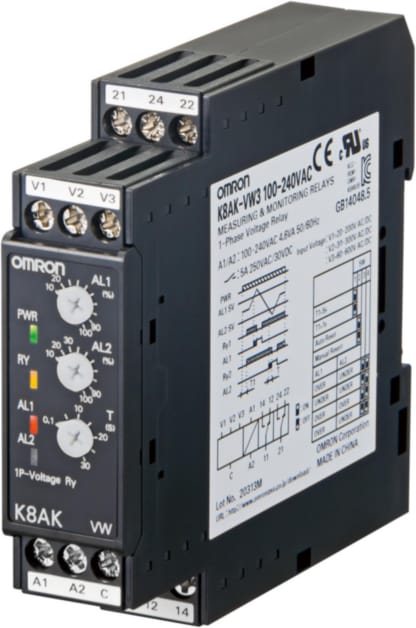

Monitoring relay 22.5mm wide, Single phase over or under voltage 20 to 600V AC or DC, Two SPDT, 100-240 VAC
Documents
K8AK-VW Single-Phase Voltage Relay
Single-phase voltage relay, window type
For monitoring over- and undervoltages simultaneously. Manual resetting and automatic resetting are supported by one relay. Separate settings and outputs are supported for over- and undervoltages. Relay warning status can easily be monitored with the LED indicator.
- Single-phase voltage window relay
- In 22.5 mm wide industrial housing
- Under and over, low/low or high/high control
- Supply voltages: 24 VAC/DC, 100 to 240 VAC
Technical Specifications
| Phase | 1-phase |
| Operation | Simultaneous upper and lower limit monitoring |
| Range | 20 to 200 V AC/DC, 30 to 300 V AC/DC, 60 to 600 V AC/DC |
| Output | Relay, SPDT, 5 A at 250 VAC/30 VDC |
| Supply Voltage | 100 -240 VAC |
| Case Material | PC and ABS |
| Mounting | DIN rail |
Why Proax for Omron K8AK-VW3 100-240VAC?
Proax is an authorized distributor of Omron K8AK-VW3 100-240VAC. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | K8AKVW3100240VAC |
| Pack Size | 1 |
