Official DistributorSKU
MPN
UCS 195-145-F-CCD 7035
Weight
0.602 kg
Series UCS

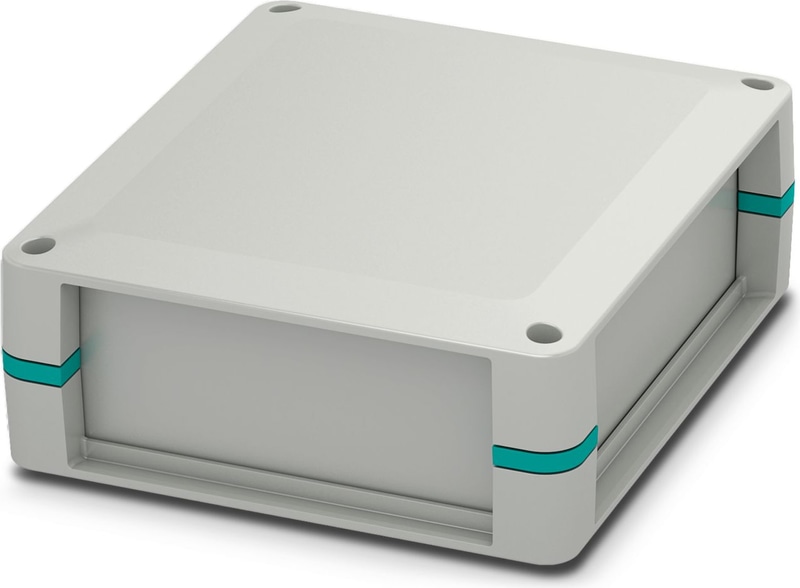

UCS 195-145-F-CCD 7035 - Universal housings
Complete housing for PCBs, fixed to the corner inlays, includes housing half shells, side panels closed, corner inlays with PCB attachment, screws for housing and PCB attachment, light gray housing with turquoise blue corner inlays
- High degree of application flexibility, thanks to the modular housing design
- Flexible PCB attachment, adapts to virtually all form factors
- Practical customization options
- Reduced logistics outlay, thanks to components which are compatible with one another
Technical Specifications
Notes
| Assembly instruction: | The housing can be opened a maximum of 10 times. |
| Note on application | Attach the adhesive pads: Make sure that the surface of the housing is clean, dry, and free of grease. Temperature range: +18°C ... +30°C / Closing pressure force: 60 N / Closing pressure time: 3 s |
Product properties
| Housing type | Universal housings |
| Housing series | UCS |
| Product family | UCS 195-145 |
| Type | Flat design (CCD) |
| Ventilation openings present | no |
Dimensions
| Width | 195 mm |
| Height | 145 mm |
| Depth | 47 mm |
| Dimensions | 169.8 mm x 120 mm (Maximum circuit board dimensions) |
PCB design
| PCB thickness | 0.8 mm ... 3 mm |
Material specifications
| Color (Housing) | light grey (RAL 7035) |
| Color (Corner inlay) | turquoise green (RAL 5018) |
| Flammability rating according to UL 94 | V0 |
| CTI according to IEC 60112 | 225 |
| Insulating material | PC |
| Housing Material | PC |
| Surface characteristics | untreated |
Power dissipation single housing for 20 °C
| Ambient Temperature | 20 °C |
| Reduction factor | 1 |
| Mounting Position | vertical |
| Power dissipation | 19 W |
Power dissipation single housing for 30 °C
| Ambient Temperature | 30 °C |
| Reduction factor | 0.83 |
| Mounting Position | vertical |
| Power dissipation | 15.7 W |
Power dissipation single housing for 40 °C
| Ambient Temperature | 40 °C |
| Reduction factor | 0.66 |
| Mounting Position | vertical |
| Power dissipation | 12.5 W |
Power dissipation single housing for 50 °C
| Ambient Temperature | 50 °C |
| Reduction factor | 0.49 |
| Mounting Position | vertical |
| Power dissipation | 9.3 W |
Power dissipation single housing for 60 °C
| Ambient Temperature | 60 °C |
| Reduction factor | 0.32 |
| Mounting Position | vertical |
| Power dissipation | 6 W |
Vibration test
| Specification | IEC 60068-2-6:2007-12 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.15 mm (10 Hz ... 58.1 Hz) |
| Acceleration | 2g (58.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h |
| Test directions | X-, Y- and Z-axis |
Glow-wire test
| Specification | IEC 60695-2-11:2014-02 |
| Temperature | 850 °C |
| Time of exposure | 30 s |
Thermal stability / ball thrust test
| Specification | IEC 60695-10-2:2014-02 |
| Temperature | 125 °C |
| Test duration | 1 h |
| Force | 20 N |
Mechanical strength / tumbling barrel
| Specification | IEC 60068-2-31:2008-05 |
| Height of fall | 50 cm |
| Frequency | 50 |
Shocks
| Specification | IEC 60068-2-27:2008-02 |
| Pulse shape | Half-sine |
| Acceleration | 15g |
| Shock duration | 11 ms |
| Number of shocks per direction | 3 |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
Test for substances that would hinder coating with paint or varnish
| Specification | VW PV 3.10.7:2005-02 |
| Result | Test passed |
Degree of protection (IP code)
| Specification | IEC 60529:1989-11 + AMD 1:1999-11 + AMD 2:2013-08 |
| Result, degree of protection, IP code | IP40 |
Ambient conditions
| Max. IP code to attain | IP40 |
| Ambient Temperature (Operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | 80 % |
PCB data
| Number of PCB holders | 1 |
| Type of PCB mount | Bolt mounting |
| Total PCB surface | 14400 mm² |
| Thickness of the PCB | 0.8 mm ... 3 mm |
| Note on PCB holders | This product is prepared for a printed-circuit board. Additional printed-circuit boards can be mounted using adhesive pads (accessories). |
Mounting
| Mounting Type | Screw mounting |
| Mounting Position | any |
| Tightening torque / speed | Screw connection between housing halves: 1.2 Nm-1.4 Nm / 500 rpm-1000 rpm |
| Tightening torque / speed | Mounting of PCB on corner feeder: 0.4 Nm-0.5 Nm / 500 rpm-1000 rpm |
Packaging specifications
| Type of packaging | Box packaging |
