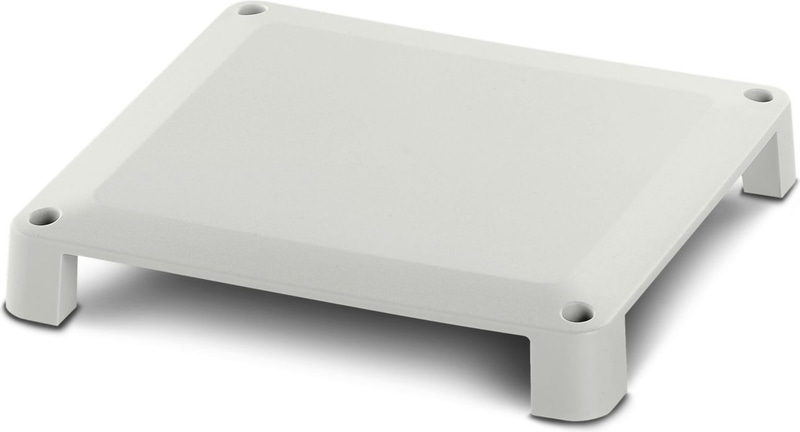

UCS HH 145-125 7035 - Housing half shell
Housing half shell for creating a UCS housing of 145 x 125 mm; material: polycarbonate; color: light gray similar to RAL 7035
- High degree of application flexibility, thanks to the modular housing design
- Flexible PCB attachment, adapts to virtually all form factors
- Practical customization options
- Reduced logistics outlay, thanks to components which are compatible with one another
Technical Specifications
Notes
| Assembly instruction: | Refer to the data sheet for the range in the download area. |
Product properties
| Housing type | Universal housings |
| Housing series | UCS |
| Product family | UCS 145-125 |
| Type | Housing half shell |
| Ventilation openings present | no |
Dimensions
| Width | 145 mm |
| Height | 125 mm |
| Depth | 21.75 mm |
PCB design
| PCB thickness | 0.8 mm ... 3 mm |
Material specifications
| Color (Housing) | light grey (RAL 7035) |
| Flammability rating according to UL 94 | V0 |
| CTI according to IEC 60112 | 225 |
| Insulating material | PC |
| Housing Material | PC |
| Surface characteristics | untreated |
Vibration test
| Specification | IEC 60068-2-6:2007-12 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.15 mm (10 Hz ... 58.1 Hz) |
| Acceleration | 2g (58.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h |
| Test directions | X-, Y- and Z-axis |
Glow-wire test
| Specification | IEC 60695-2-11:2014-02 |
| Temperature | 850 °C |
| Time of exposure | 30 s |
Thermal stability / ball thrust test
| Specification | IEC 60695-10-2:2014-02 |
| Temperature | 125 °C |
| Test duration | 1 h |
| Force | 20 N |
Mechanical strength / tumbling barrel
| Specification | IEC 60068-2-31:2008-05 |
| Height of fall | 50 cm |
| Frequency | 50 |
Shocks
| Specification | IEC 60068-2-27:2008-02 |
| Pulse shape | Half-sine |
| Acceleration | 15g |
| Shock duration | 11 ms |
| Number of shocks per direction | 3 |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
Test for substances that would hinder coating with paint or varnish
| Specification | VW PV 3.10.7:2005-02 |
| Result | Test passed |
Degree of protection (IP code)
| Specification | IEC 60529:1989-11 + AMD 1:1999-11 + AMD 2:2013-08 |
| Result, degree of protection, IP code | IP40 |
Ambient conditions
| Max. IP code to attain | IP40 |
| Ambient Temperature (Operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | 95 % |
PCB data
| Type of PCB mount | Bolt mounting |
| Total PCB surface | 11800 mm² |
| Thickness of the PCB | 0.8 mm ... 3 mm |
| Supported form factors | Raspberry Pi, Pico-ITX, PC/104, ETX |
Mounting
| Mounting Type | Screw mounting |
| Mounting Position | any |
| Tightening torque / speed | Screw connection between housing halves: 1.2 Nm-1.4 Nm / 500 rpm-1000 rpm |
| Tightening torque / speed | Mounting of PCB on corner feeder: 0.4 Nm-0.5 Nm / 500 rpm-1000 rpm |
Packaging specifications
| Type of packaging | Box packaging |
