WMTB HF-D (40X12)R BU
Weight
1.177 kg
This product is Not Cancellable/Not Returnable

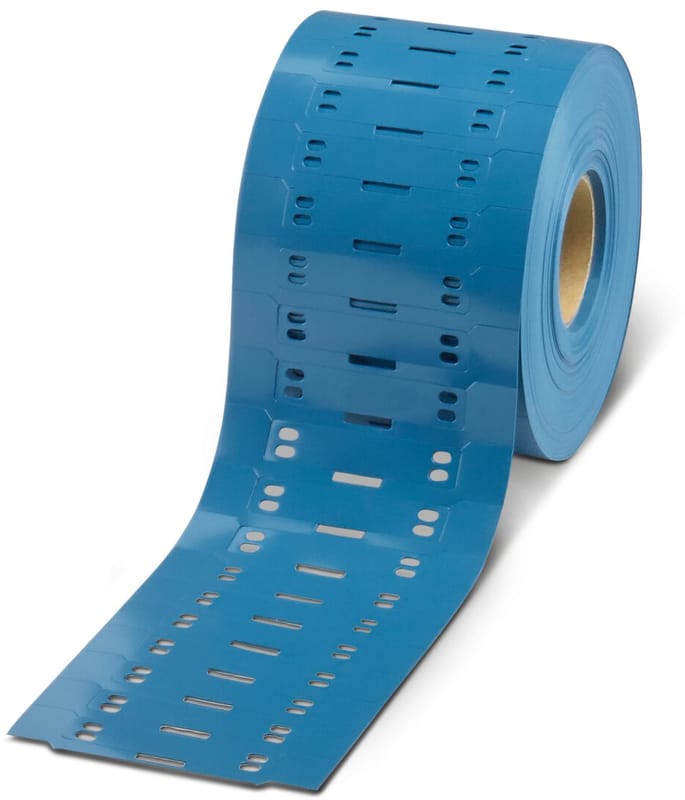

WMTB HF-D (40X12)R BU - Detectable cable markers
- WMTB HF-D … detectable cable marker for identification of various cables and wires in controller, system, and control cabinet building in the food industry
- The halogen-free wire and cable markers can be detected inductively
- When combined with the TM-RIBBON 105 BK 106 ink ribbon, the printing is highly resistant to solvents, aggressive cleaning agents, acetone, and ethanol
- The highly flexible material adapts to the conductors and cables
- The material used has been tested and approved by ISEGA for use in the food industry
Technical Specifications
Dimensions
| Length (b) | 40 mm |
| Width (a) | 12 mm |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 105 °C |
| Recommended storage conditions | 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended. |
General
| Note | Due to the differing detection properties of metal detectors, the installer/end user is to check suitability for the actual application |
| Color | blue |
| Slot type | Role |
| Material | TPU |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Number of individual labels | 1000 |
| Number of individual labels per row | 1 |
| Mounting Type | Assembly with cable ties |
| Testing substances harmful to the wetting properties of lacquers (LABS conformity) | VW PV 3.10.7:2005-02 |
| Result | Test passed |
| UV resistance | Following ISO 4892-2:2013-03 |
| Result | Test passed |
| Test duration | 96 h |
| Test for wipe resistance of inscriptions | IEC 61010-1:2010-06 |
| Test for wipe resistance of inscriptions | DIN EN 62208 (VDE 0660-511):2012-06 (in parts) |
| Testing in a condensation changing climate in the presence of sulfur dioxide | DIN 50018:2013-05 |
| Result | Test passed |
| Climate level | AHT 1,0 S |
| Cycles | 2 |
| Salt spray test | DIN EN 60068-2-11:2000-02 |
| Result | Test passed |
| Silicone-free | Yes |
| Halogen-free | Yes |
Why Proax for Phoenix Contact 1255595?
Proax is an authorized distributor of Phoenix Contact 1255595 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
