Official DistributorSKU
MPN
WMTB HF (40X12)R RD
Weight
1.118 kg

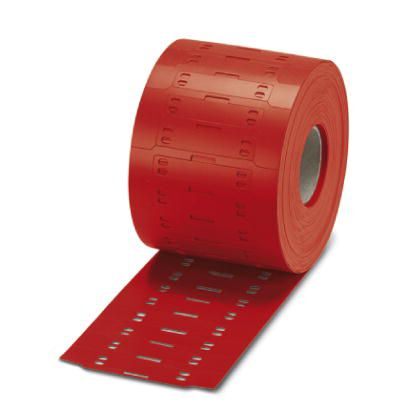

WMTB HF (40X12)R RD - Cable marker
- The WMTB HF ... conductor and cable marking is used for the identification and bundling conductors and cables indoors and outdoors
- When combined with the right ink ribbon, the marking is highly resistant to solvents and mechanical influences
- The markers are made of a halogen-free material
- The highly flexible material adapts to the conductors and cables
Technical Specifications
Dimensions
| Length (b) | 40 mm |
| Width (a) | 12 mm |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 100 °C |
| Recommended storage conditions | 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended. |
General
| Color | red |
| Slot type | Role |
| Components | halogen-free |
| Material | PUR |
| Flammability rating according to UL 94 | V2 (0,75 mm Wandstärke) |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Number of individual labels | 1000 |
| Number of individual labels per row | 1 |
| Mounting Type | Assembly with cable ties |
| Testing substances harmful to the wetting properties of lacquers (LABS conformity) | VDMA 24364:2018-05 |
| Result | Test passed |
| Result | Test passed |
| UV resistance | Following ISO 4892-2:2013-03 |
| Result | Test passed |
| Test duration | 96 h |
| Temperature resistance | Following ANSI/UL 969-2018:03 |
| Test duration | 240 h |
| Rating 125 °C (150 °C) | Test passed |
| Test for wipe resistance of inscriptions | DIN EN 61010-1 (VDE 0411-01):2020-03 |
| Test for wipe resistance of inscriptions | DIN EN 62208 (VDE 0660-511):2012-06 (in parts) |
| Test duration | 168 h |
| Test duration | 168 h |
| Testing in a condensation changing climate in the presence of sulfur dioxide | DIN 50018:2013-05 |
| Result | Test passed |
| Climate level | AHT 1,0 S |
| Cycles | 2 |
| Salt spray test | DIN EN 60068-2-11:2000-02 |
| Result | Test passed |
| Test duration | 96 h |
| Silicone-free | Yes |
| Halogen-free | Yes |
Accessories
Ink ribbon, for roll printer for printing product groups WMTB HF..., WMS-2 HF..., TMT..., EMT..., EMLF..., PML-..., length: 300 m, roll length: 300 m, width: 110 mm, color: black
TM-RIBBON 110-WMTB HF WH - Ink ribbon, for roll printer for printing product group WMTB HF..., length: 300 m, roll length: 300 m, width: 110 mm, color: white
