Official DistributorSKU
MPN
IOA DAC-4DI/AI/EX
Weight
0.064 kg

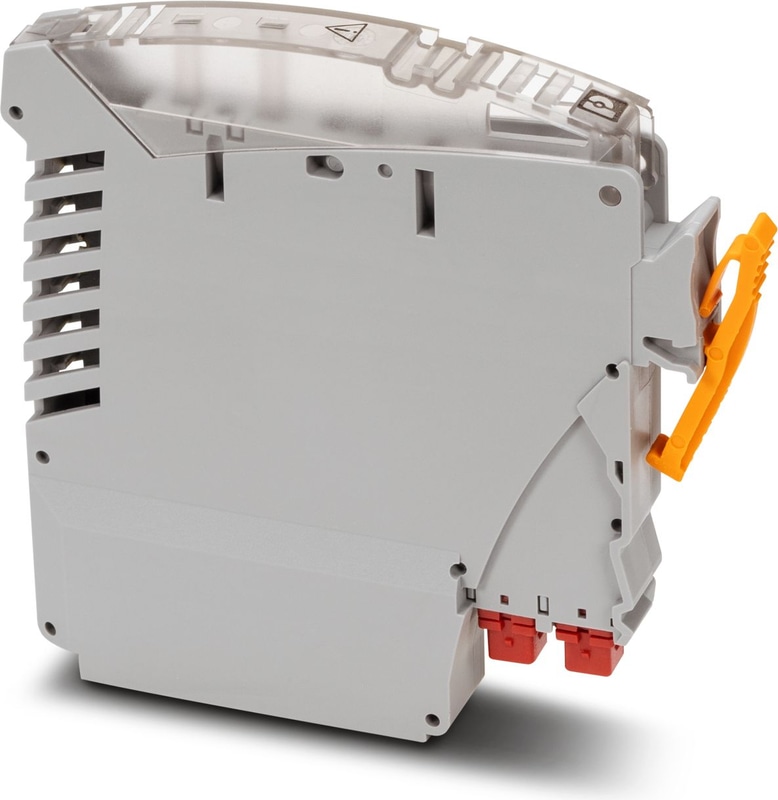

IOA DAC-4DI/AI/EX - Converter
Digital-to-analog converter for VIP I/O-Marshalling base elements. For connection of four digital inputs and conversion to a single analog 4...20 mA signal. Saves three I/O channels.
Technical Specifications
Product properties
| Product family | VIP I/O-Marshalling |
| Number of Positions | 1 |
Insulation characteristics
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Max. permissible current | 20 mA |
| Nominal voltage UN | 19.2 V DC ... 30 V DC |
Safety data
| Input voltage Ui | 30 V |
| Input current Ii | 19 mA |
| Input power Pi | 570 mW |
| Max. output voltage Uo | 2.5125 V |
| Max. output current Io | 19.55 mA |
| Max. output power Po | 49 mW |
| Safety-related maximum voltage Um | 30 V |
| Max. external inductivity Lo / Max. external capacitance Co | / 999 µF |
| Max. external inductivity Lo / Max. external capacitance Co | 209 mH |
Item dimensions
| Width | 10.3 mm |
| Height | 64.2 mm |
| Depth | 72.9 mm |
Material specifications
| Color | gray (RAL 7042) |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 75 °C |
| Ambient temperature (storage/transport) | -40 °C ... 75 °C |
| Altitude | ≤ 2000 m |
| Permissible humidity (operation) | 0 % ... 95 % (non-condensing) |
ATEX
| Identification | II 3G Ex ec IIC T4 Gc |
| Identification | II 3G Ex ic IIC T4 Gc |
| Certificate | CSANe 20ATEX3152X |
IECEx
| Identification | Ex ec IIC T4 Gc |
| Identification | Ex ic IIC T4 Gc |
| Certificate | IECEx SIR 21.0005X |
UKEX
| Identification | II 3G Ex ec IIC T4 Gc |
| Identification | II 3G Ex ic IIC T4 Gc |
| Certificate | PxCIF23UKEX1145061X |
CSA, USA/Canada
| Identification | Class I, Div. 2, Groups A, B, C, D |
| Identification | Class I, Zone 2, AEx ic IIC T4 Gc |
| Identification | ANIFW apparatus for connection to:Class I, II, III, Div. 2 Groups A, B, C, D, F, G |
| Identification | Ex ic IIC T4 Gc |
| Identification | Ex ec IIC T4 Gc |
| Certificate | CSA 21CA80047687X |
Standards and Regulations
| Standards/regulations | IEC 60664 |
| Standards/regulations | DIN EN 50178 |
Mounting
| Mounting Type | Plug-in mounting |
| Assembly instructions | Plugs into VIP/...BASE... |
| Mounting Position | any |
Why Proax for Phoenix Contact 1145061?
Proax is an authorized distributor of Phoenix Contact 1145061 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
