MACX-TR-1T-POFF-PT
Weight
0.179 kg
This product is Not Cancellable/Not Returnable
Series MACX-TR

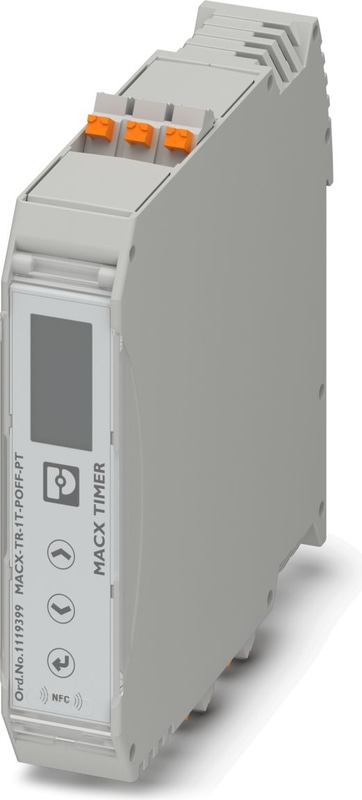

MACX-TR-1T-POFF-PT - Timer relay
Power off delay time relay, 24 V AC/DC ... 240 V AC/DC wide-range supply, time range adjustable (10 ms ... 10 min), two configuration possibilities, password protection, 2 PDTs, push-in connection.
Technical Specifications
Product properties
| Mechanical service life | Approx. 3x 104 cycles |
Insulation characteristics
| Insulation | Basic insulation |
| Insulation | Basic insulation |
| Overvoltage category | III |
| Pollution degree | 3 |
Electrical properties
| Service life electrical | approx. 1x 105 cycles, resistive load 2000 V A |
| Nominal frequency | 48 Hz ... 63 Hz |
| Nominal Power Consumption | 2.5 VA (0.8 W) |
| Rated Insulation Voltage | 300 V AC |
| Dielectric strength | 2 kV ((2 mA, 60 s) (IEC 60947-5-1)) |
Input data
| Nominal Power Consumption | 2.5 VA (0.8 W) |
| Input voltage range | 24 V AC/DC ... 240 V AC/DC (-15 % ... +10 %) |
| Temperature coefficient, typical | ≤ 0.01 %/°C |
| Recovery time | 250 ms |
| Setting range time | 10 ms ... 10 min. |
| Setting accuracy | ≤ 0.5 % (＞1 s) |
| Repeat accuracy | ≤ 0.05 % (＞1 s) |
Switching
| Contact switching type | 2 floating changeover contacts |
| Contact Material | AgNi (90/10) |
| Maximum Switching Voltage | 400 V AC |
| Interrupting rating (ohmic load) max. | 2000 VA (8 A / 250 V AC) |
| Output fuse | 8 A (fast-blow) |
Connection data
| Connection Method | Push-in connection |
| Stripping length | 10 mm |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 14 |
Dimensions
| Width | 22.5 mm |
| Height | 109 mm |
| Depth | 114 mm |
Material specifications
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V0 |
| Housing insulation material | PBT |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -25 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 2000 m |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
CE
| Identification | CE-compliant |
UL, USA/Canada
| Identification | UL/C-UL Listed UL 508 |
CCC
| Identification | GB/T 14048.5 |
EMC data
| Low Voltage Directive | Conformance with Low Voltage Directive |
| Noise immunity | EN 61000-6-2 |
| Electromagnetic compatibility | Conformance with EMC directive |
| Noise emission | EN 61000-6-4 |
Standards and Regulations
| Standards/regulations | IEC 60947-5-1 |
| Standards/regulations | IEC 61812-1 |
Mounting
| Mounting Type | DIN rail mounting |
| Assembly instructions | on standard DIN rail NS 35 in accordance with EN 60715 |
| Mounting Position | any |
