Official DistributorSKU
MPN
MACX-TR-1T-MUL-PT
Weight
0.175 kg
Series MACX-TR

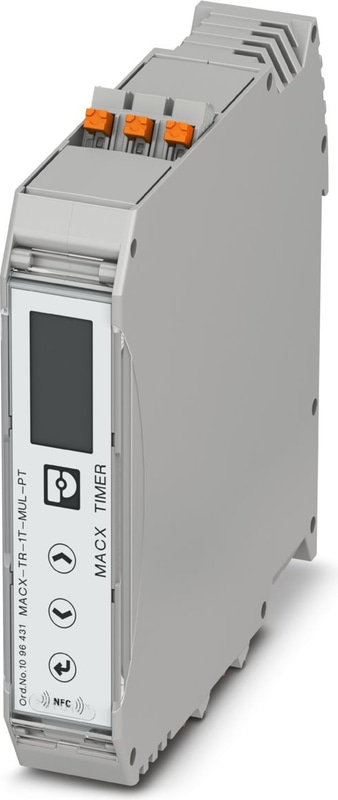

MACX-TR-1T-MUL-PT - Timer relay
Multifunctional time relay, 24 V AC/DC … 240 V AC/DC wide-range supply, with 13 functions, 1 adjustable time, in addition to Ip and Ii functions. Time range adjustable (10 ms ... 999 h:59 min), two configuration possibilities, password protection, supporting dry contacts, PNP and NPN proximity switch inputs, 2 PDTs, plug-in connection.
Technical Specifications
Product properties
| Mechanical service life | Approx. 3x 10⁷ cycles |
Insulation characteristics
| Insulation | Basic insulation |
| Insulation | Basic insulation |
| Overvoltage category | III |
| Pollution degree | 3 |
Electrical properties
| Service life electrical | approx. 1x 105 cycles, resistive load 2000 V A |
| Nominal frequency | 48 Hz ... 63 Hz |
| Nominal Power Consumption | 2.5 VA (0.8 W) |
| Rated Insulation Voltage | 300 V AC |
| Dielectric strength | 2 kV ((2 mA, 60 s) (IEC 60947-5-1)) |
Input data
| Nominal Power Consumption | 2.5 VA (0.8 W) |
| Input voltage range | 24 V AC/DC ... 240 V AC/DC (-15 % ... +10 %) |
| Temperature coefficient, typical | ≤ 0.01 %/°C |
| Recovery time | 100 ms |
| Setting range time | 10 ms ... 59999 min. (10 ms ... 999 h 59 min.) |
| Setting accuracy | ≤ 0.5 % (＞1 s) |
| Repeat accuracy | ≤ 0.05 % (＞1 s) |
Control
| Connection name | Non-floating, terminals A1-B1 |
| Control pulse length | 50 ms |
Switching
| Contact switching type | 2 floating changeover contacts |
| Contact Material | AgNi (90/10) |
| Maximum Switching Voltage | 400 V AC |
| Interrupting rating (ohmic load) max. | 2000 VA (8 A / 250 V AC) |
| Output fuse | 8 A (fast-blow) |
Connection data
| Connection Method | Push-in connection |
| Stripping length | 10 mm |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 14 |
Dimensions
| Width | 22.5 mm |
| Height | 109 mm |
| Depth | 114 mm |
Material specifications
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V0 |
| Housing insulation material | PBT |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -25 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 2000 m |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
CE
| Identification | CE-compliant |
UL, USA/Canada
| Identification | UL/C-UL Listed UL 508 |
CCC
| Identification | GB/T 14048.5 |
EMC data
| Low Voltage Directive | Conformance with Low Voltage Directive |
| Noise immunity | EN 61000-6-2 |
| Electromagnetic compatibility | Conformance with EMC directive |
| Noise emission | EN 61000-6-4 |
Standards and Regulations
| Standards/regulations | IEC 60947-5-1 |
| Standards/regulations | IEC 61812-1 |
Mounting
| Mounting Type | DIN rail mounting |
| Assembly instructions | on standard DIN rail NS 35 in accordance with EN 60715 |
| Mounting Position | any |
Why Proax for Phoenix Contact 1096431?
Proax is an authorized distributor of Phoenix Contact 1096431 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
