1118306
Official DistributorSKU
PHX1118306
MPN
ICE50-R100X67-A1
Weight
0.326 kg

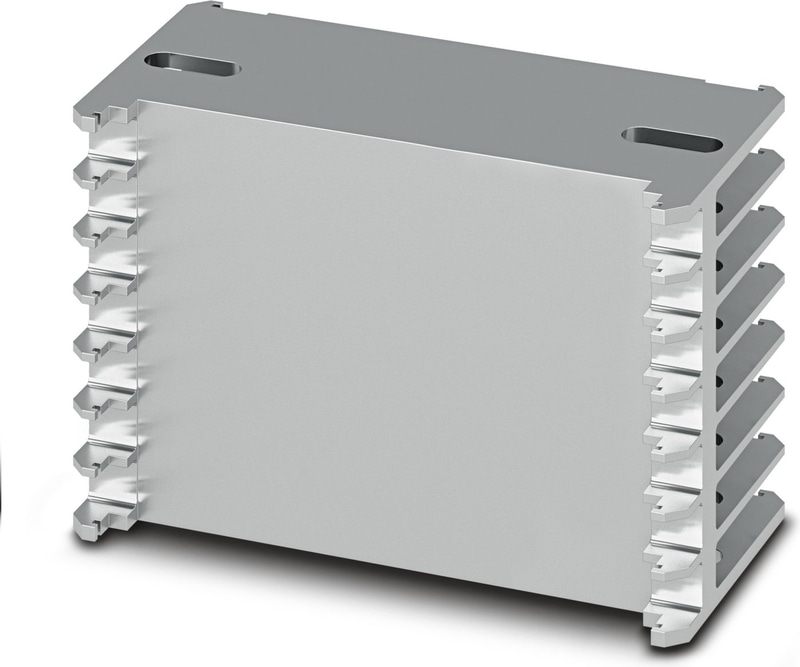

ICE50-R100X67-A1 - Heatsink
Heatsink for housing series: ICS, material: Aluminum, anodized, product range: ICS50-..100X.., width: 67.4 mm, height: 50.1 mm, Individual milling possible.
- Heatsinks enable the finished devices to be used in thermally demanding applications
- Extensive thermal simulations help achieve the optimum arrangement of components on the printed circuit board
- Customized heatsinks for reliable heat dissipation
- Simplified engineering process: all the services needed for your specific device design
- Tailored system solution comprised of a housing, connection technology, heatsink, and additional accessories
Technical Specifications
Notes
| General | Individual milling possible. |
| General | Refer to the data sheet for the range in the download area. |
| General | The Rth diagram shows the application, free-hanging (vertical) in the direction of flow. |
Product properties
| Housing type | Heatsink |
| Housing series | ICS |
| Product family | ICS50-..100X.. |
Dimensions
| Width | 67.4 mm |
| Height | 50.1 mm |
| Length | 105 mm |
| Base panel thickness [b] | 5.8 mm |
Material specifications
| Color | aluminum color |
| Color (Housing) | aluminum |
| Material | Aluminum |
| Surface characteristics | anodized |
| Thermal resistance Rth | 1.58 K/W (At ΔT 65 K for ambient temperature) |
| Thermal resistance Rth | 2.91 K/W (At ΔT 5 K for ambient temperature) |
Vibration test
| Specification | IEC 60068-2-6:2007-12 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.15 mm (10 Hz ... 58.1 Hz) |
| Acceleration | 2g (58.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h |
| Test directions | X-, Y- and Z-axis |
Shocks
| Specification | IEC 60068-2-27:2008-02 |
| Pulse shape | Semi-sinusoidal |
| Acceleration | 15g |
| Shock duration | 11 ms |
| Number of shocks per direction | 3 |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
Test for substances that would hinder coating with paint or varnish
| Specification | VDMA 24364:2018-05 |
| Result | Test passed |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
Mounting
| Mounting Type | Slot |
Why Proax for Phoenix Contact 1118306?
Proax is an authorized distributor of Phoenix Contact 1118306 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
