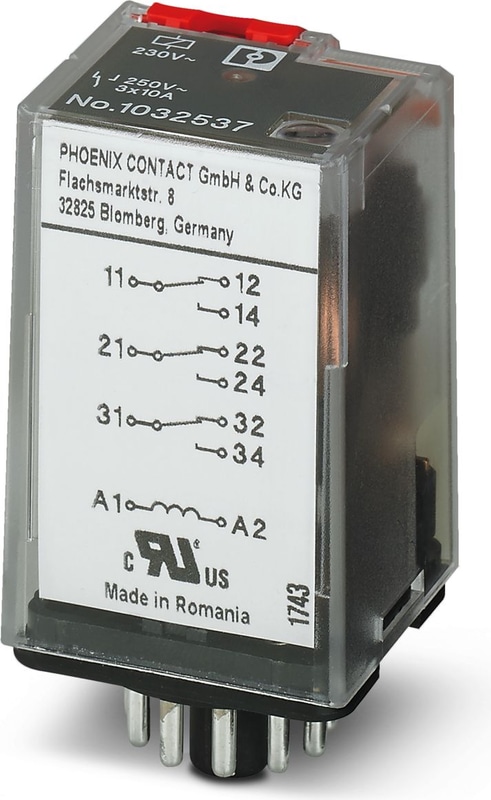

REL-OR-BL-230AC/3X21 - Single relay
Plug-in octal relays in basic design with power contacts, 3 changeover contacts, test button, mechanical switch position indicator, input voltage: 230 V AC
Technical Specifications
Notes
| Notes on operation | Do not connect adjacent channels to SELV/ PELV and voltages dangerous to the touch. |
| Notes on operation | The outputs are not suitable for switching different outer conductors. |
| Notes on operation | Do not use to separate SELV / PELV circuits from other circuits, because safe isolation is not guaranteed. |
Product properties
| Operating mode | 100% operating factor |
| Mechanical service life | 2x 10⁷ cycles |
Insulation characteristics
| Insulation | Basic insulation |
Insulation characteristics: Air clearances and creepage distances
| Insulation | Basic insulation |
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Service life electrical | see diagram |
| Maximum power dissipation for nominal condition | 2.32 VA (50 Hz) |
| Test voltage (Winding/contact) | 2.5 kVrms (50 Hz, 1 min., winding/contact) |
| Test voltage (Changeover contact/changeover contact) | 2.5 kVrms (50 Hz, 1 min., changeover contact/changeover contact) |
Air clearances and creepage distances
| Rated Insulation Voltage | 250 V AC |
| Rated surge voltage | 2.5 kV |
Coil side
| Nominal input voltage UN | 230 V AC |
| Input voltage range | 207 V AC ... 299 V AC |
| Input voltage range in reference to UN | see diagram |
| Mains frequency | 50/60 Hz |
| Drive and function | monostable |
| Drive (polarity) | non-polarized |
| Typical input current at UN | 10 mA (at 50 Hz) |
| Typical response time | 5 ms ... 15 ms |
| Typical release time range | 5 ms ... 20 ms |
| Coil Voltage | 230 V AC |
Switching
| Contact switching type | 3 changeover contacts |
| Type of switch contact | Single contact |
| Contact Material | AgNi |
| Maximum Switching Voltage | 250 V AC/DC |
| Minimum Switching Voltage | 12 V (10 mA) |
| Limiting Continuous Current | 10 A |
| Maximum Inrush Current | 20 A (20 ms, N/O contacts) |
| Min. switching current | 10 mA (12 V) |
| Interrupting rating (ohmic load) max. | 240 W (24 V DC) |
| Interrupting rating (ohmic load) max. | 96 W (48 V DC) |
| Interrupting rating (ohmic load) max. | 72 W (60 V DC) |
| Interrupting rating (ohmic load) max. | 50 W (110 V DC) |
| Interrupting rating (ohmic load) max. | 55 W (220 V DC) |
| Interrupting rating (ohmic load) max. | 2500 VA (250 V AC) |
| Switching capacity min. | 120 mW |
Connection data
| Connection Method | Plug-in connection |
Ambient conditions
| Degree of Protection | RT I |
| Degree of protection (Installation location) | ≥ IP54 (Installation location) |
| Ambient Temperature (Operation) | -40 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 60 °C |
| Altitude | ≤ 2000 m |
Air clearances and creepage distances
| Standards/regulations | EN 61810-1 |
Mounting
| Assembly instructions | in rows with zero spacing |
| Mounting Position | any |
