2834290
Official DistributorSKU
PHX2834290
MPN
REL-OR-120AC/3X21
Weight
0.11 kg
Series REL-OR

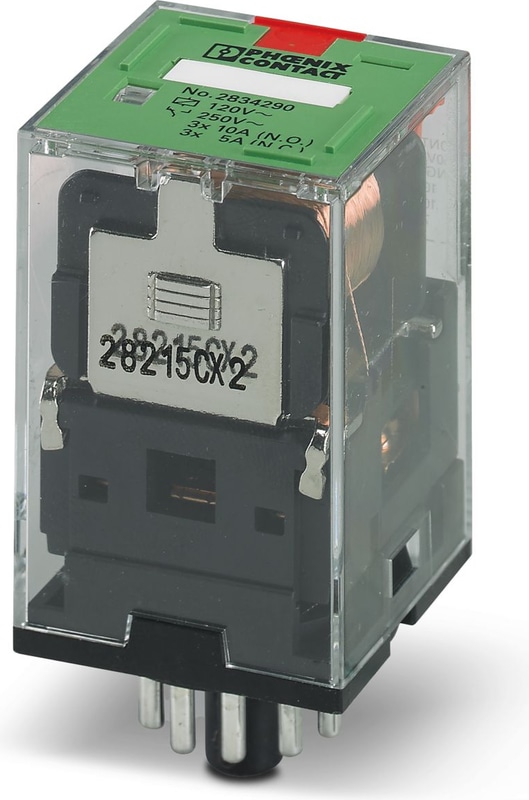

REL-OR-120AC/3X21 - Single relay
Plug-in octal relays with power contacts, 3 changeover contacts, test button, mechanical switching position indicator, coil voltage: 120 V AC
- Extremely rugged design
- With detectable manual operation
- Mechanical switch position indicator
Technical Specifications
Product properties
| Operating mode | 100% operating factor |
| Mechanical service life | 10x 10⁶ cycles |
Insulation characteristics
| Overvoltage category | II |
| Pollution degree | 3 |
Electrical properties
| Service life electrical | see diagram |
| Maximum power dissipation for nominal condition | 2.64 W |
| Test voltage (Winding/contact) | 2.5 kV AC (50 Hz, 1 min., winding/contact) |
| Test voltage (Contact/contact) | 2.5 kV AC (50 Hz, 1 min., contact/contact) |
Coil side
| Nominal input voltage UN | 120 V AC |
| Input voltage range | 19.2 V AC ... 26.4 V AC |
| Input voltage range in reference to UN | 0.8 ... 1.1 |
| Mains frequency | 50/60 Hz |
| Drive and function | monostable |
| Typical input current at UN | 22 mA (at 50 Hz) |
| Typical input current at UN | 20 mA (At 60 Hz) |
| Typical response time | 5 ms ... 20 ms (AC, depending on phase relation) |
| Typical release time range | 5 ms ... 20 ms (AC, depending on phase relation) |
| Coil resistance | 1520 Ω ±15 % (at 20 °C) |
Switching
| Contact switching type | 3 changeover contacts |
| Type of switch contact | Single contact |
| Contact Material | AgSnIn |
| Maximum Switching Voltage | 250 V AC/DC |
| Minimum Switching Voltage | 1 V |
| Limiting Continuous Current | 10 A (N/O contact) |
| Limiting Continuous Current | 5 A (N/C contact) |
| Maximum Inrush Current | on request |
| Min. switching current | 10 mA |
| Interrupting rating (ohmic load) max. | 2500 VA (for 250 V AC) |
Connection data
| Connection Method | Plug-in connection |
Dimensions
| Width | 34.5 mm |
| Height | 34.5 mm |
| Depth | 52.5 mm |
Ambient conditions
| Degree of Protection | RT I |
| Ambient Temperature (Operation) | -40 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 60 °C |
Standards and Regulations
| Standards/regulations | IEC 60664 |
Mounting
| Assembly instructions | On relay base PR3 |
| Mounting Position | any |
