9978431
Official DistributorBy Rittal
SKU
RIT9978431
This product is Not Cancellable/Not Returnable

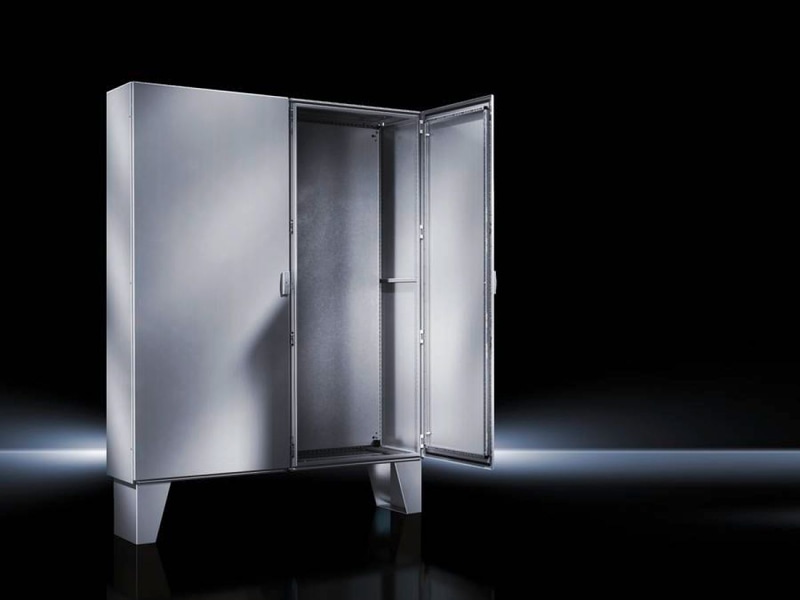

Rittal's stainless steel floormount TS 8 combines the strength of unibody floormount enclosures with the flexibility of Rittal's revolutionary modular design. With its double door configuration and wide range of accessories, Rittal's floormount TS 8 is sure to meet your application needs.
TS 8 freestanding enclosures Stainless steel
Baying systems TS 8 with mounting plate. Protection category IP 66 (UL Type 4X). Manufactured in stainless steel 1.4404 (AISI 316L) Enclosure widths include 600 and 800 mm.
Technical Specifications
Dimensions
| Width | 1,600 mm |
| Height | 2,000 mm |
| Depth | 400 mm |
Material
| Enclosure frame | Stainless steel 1.4301 (AISI 304), 1.5 mm |
| Roof | Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed |
| Door | Stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed |
| Rear panel | Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed |
| Base | Stainless steel 1.4301 (AISI 304), 1.5 mm |
Surface finish
| Enclosure frame and base plates | Uncoated |
| Door, roof and rear panel | Exterior brushed, grain size 400 |
| Mounting plate | Zinc-plated |
| Model no. | 2000H1600W0400D TS S-S TYPE 4X |
| Customs tariff number | 7326909099 |
| UPC-Code | 86610 |
Why Proax for Rittal 9978431?
Proax is an authorized distributor of Rittal 9978431 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
