9977469
Official DistributorBy Rittal
SKU
RIT9977469
Weight
136 kg
This product is Not Cancellable/Not Returnable
This item is ineligible for free shipping due to its size/weight.

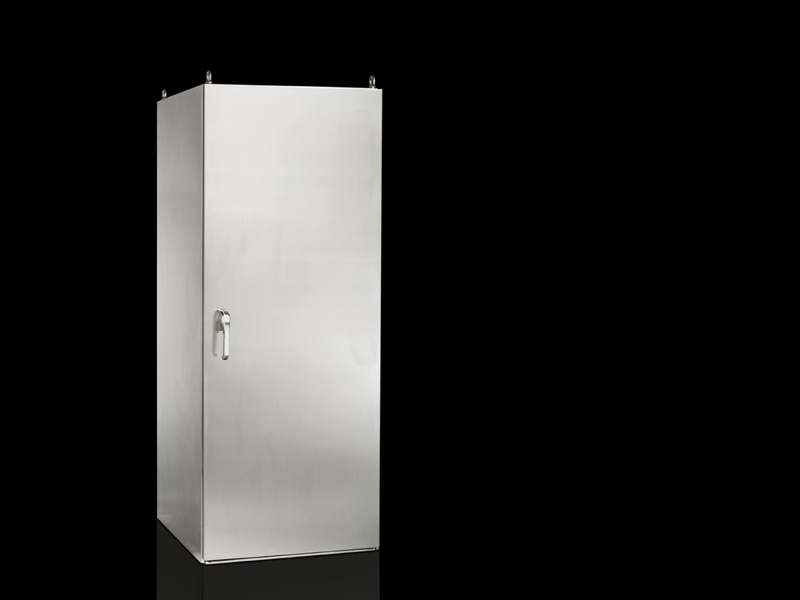

Rittal, 9977469, 2200H0800W0600D TS S/S 316
TS 8 freestanding enclosures Stainless steel
Baying systems TS 8 with mounting plate. Protection category IP 66 (UL Type 4X). Manufactured in stainless steel 1.4404 (AISI 316L) Enclosure widths include 600 and 800 mm.
Technical Specifications
Dimensions
| Width | 800 mm |
| Height | 2,200 mm |
| Depth | 600 mm |
Material
| Enclosure frame | Stainless steel 1.4404 (AISI 316L), 1.5 mm |
| Roof | Stainless steel 1.4404 (AISI 316L), 1.5 mm, exterior brushed |
| Door | Stainless steel 1.4404 (AISI 316L), 2.0 mm, exterior brushed |
| Rear panel | Stainless steel 1.4404 (AISI 316L), 1.5 mm, exterior brushed |
| Gland plate | Stainless steel 1.4404 (AISI 316L), 2.5 mm |
Surface finish
| Enclosure frame and base plates | Uncoated |
| Door, roof and rear panel | Exterior brushed, grain size 400 |
| Mounting plate | Zinc-plated |
| Model no. | 2200H0800W0600D TS S-S 316 |
| Weight/packaging unit | 136 kg |
| Customs tariff number | 7326908688 |
| UPC-Code | 88040 |
Why Proax for Rittal 9977469?
Proax is an authorized distributor of Rittal 9977469 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
