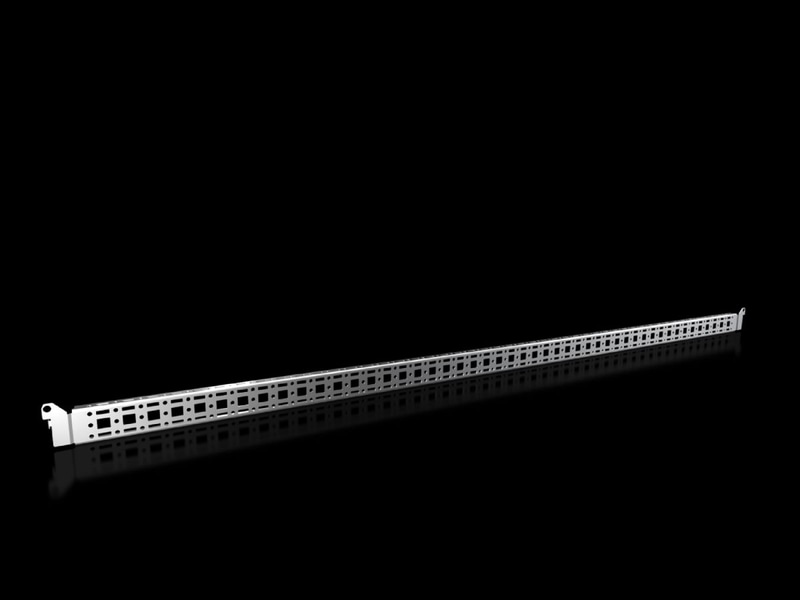

System chassis 14 x 39 mm For VX, TS, SE, PC, IW, AX

For securing cable ducts, cable conduit holders, equipment installed on the door, etc.

Suitable for

Enclosure Type	AX
Suitable for width or height or depth	760 mm

Material	Carbon steel
Surface finish	Zinc-plated
Distance between fixing points	635 mm
Installation options AX	In enclosure height 760 mm, in conjunction with rail for interior installation AX
Mounting tip	For installation in AX carbon steel, only in conjunction with rails interior installation AX
Note	Sheet metal screws or M5 self-tapping screws are required for extension with own components on the system chassis
Packaging unit	4 pc(s).
Weight/packaging unit	1.36 kg
Customs tariff number	73269098
EAN	4028177940765
ETIM 7.0	EC002625
ECLASS 8.0	27189234
