4377000
Official DistributorBy Rittal
SKU
RIT4377000
Weight
3.132 kg

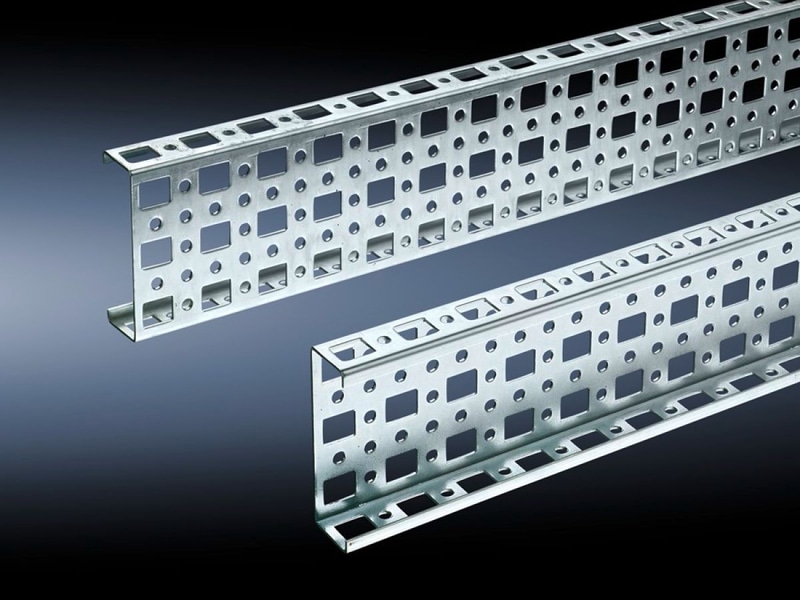

SZ TS punched section without mounting flange, 23 x 73 mm, for TS, SE, for WHD: 800 mm, L: 695 mm
PS Mounting Chassis, 23 x 73 mm for TS, SE
Mounted on the horizontal and vertical TS enclosure profiles using PS support brackets.
Technical Specifications
Suitable for
| Enclosure Type | TS |
| Suitable for width or height or depth | 800 mm |
| Material | Carbon steel |
| Surface finish | Zinc-plated |
| Length | 695 mm |
| Installation options | Directly on the vertical enclosure section via support brackets TS and via adapter rail for PS compatibility in conjunction with support brackets PS |
| Packaging unit | 4 pc(s). |
| Weight/packaging unit | 3.132 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177100015 |
| ETIM 7.0 | EC002625 |
| ECLASS 8.0 | 27189234 |
Why Proax for Rittal 4377000?
Proax is an authorized distributor of Rittal 4377000 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
