2565200
Official DistributorBy Rittal
SKU
RIT2565200
Weight
0.418 kg

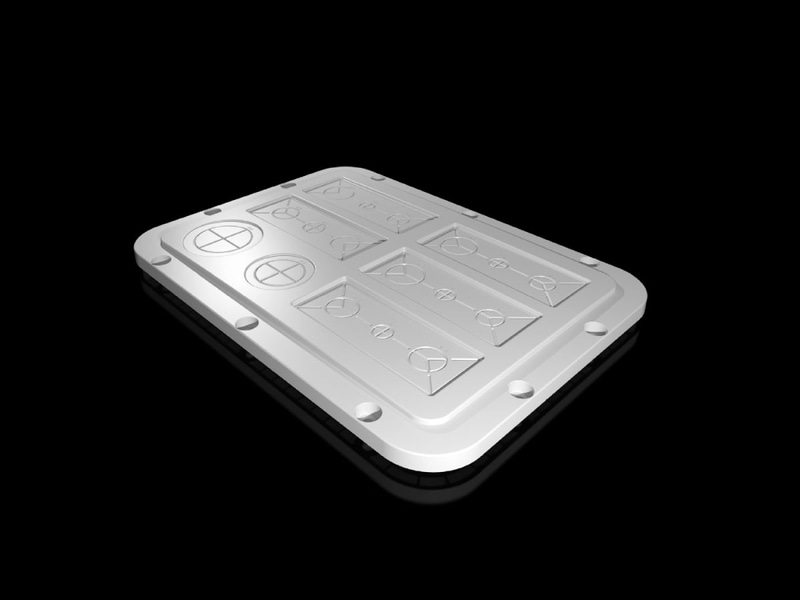

SZ Plastic gland plates, for AX, for cable entry, modular, pre-punched, WD: 301x221 mm, for gland plates size 5
Plastic Cable Gland Plates with metric knockouts, for AX
Simply break through the plastic on the knockouts for cable glands. Additional rectangular cut-outs and reinforcement frames allow the cable gland to be installed directly (modular).
Technical Specifications
Dimensions
| Width | 301 mm |
| Depth | 221 mm |
| Material | Plastic to UL 94-V0 |
| Color | RAL 7035 |
| Number of rectangular cutouts information | 1x rectangular cutout takes 10 sealing inserts, small |
| Number of rectangular cutouts | 5 |
| Note | The assignment of the flange plate size can be found on the respective housings |
| No. of metric knockouts | 4 x M12 4 x M16 4 x M20 3 x M25 1 x M32 1 x M40 |
| Gland plate | Size: 5 |
| Operating temperature range | -40 °C...80 °C |
| Protection category IP to EN 60 529 | IP 66 if correctly installed |
| Type rating according to UL 50E | Type 1, 12 |
| Weight/packaging unit | 0.418 kg |
| Customs tariff number | 39269097 |
| EAN | 4028177938434 |
| ETIM 7.0 | EC000211 |
| ECLASS 8.0 | 27142421 |
