2564200
Official DistributorBy Rittal
SKU
RIT2564200
Weight
0.573 kg

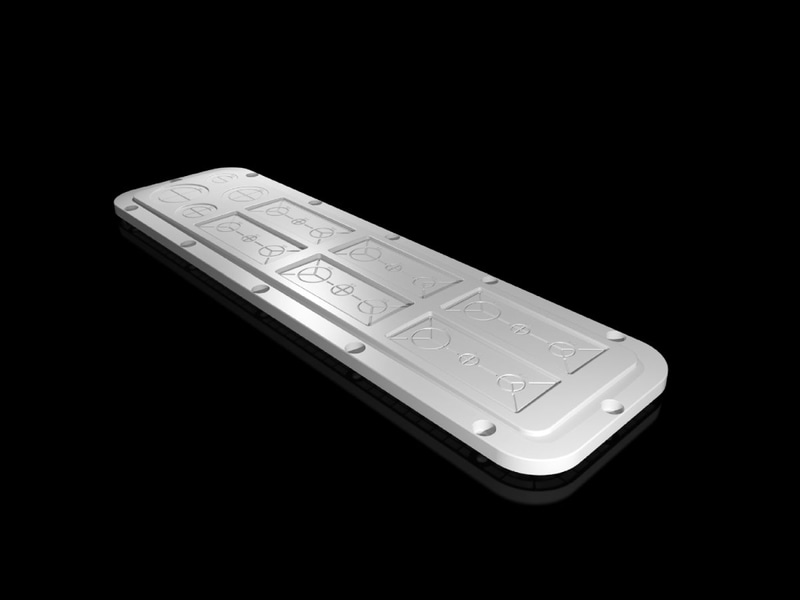

SZ Plastic gland plates, for AX, for cable entry, modular, pre-punched, WD: 534x149 mm, for gland plates size 4
Plastic Cable Gland Plates with metric knockouts, for AX
Simply break through the plastic on the knockouts for cable glands. Additional rectangular cut-outs and reinforcement frames allow the cable gland to be installed directly (modular).
Technical Specifications
Dimensions
| Width | 534 mm |
| Depth | 149 mm |
| Material | Plastic to UL 94-V0 |
| Color | RAL 7035 |
| Number of rectangular cutouts information | 1x rectangular cutout takes 10 sealing inserts, small |
| Number of rectangular cutouts | 6 |
| Note | The assignment of the flange plate size can be found on the respective housings |
| No. of metric knockouts | 5 x M12 4 x M16 6 x M20 5 x M25 1 x M32 1 x M40 |
| Gland plate | Size: 4 |
| Operating temperature range | -40 °C...80 °C |
| Protection category IP to EN 60 529 | IP 66 if correctly installed |
| Type rating according to UL 50E | Type 1, 12 |
| Weight/packaging unit | 0.573 kg |
| Customs tariff number | 39269097 |
| EAN | 4028177938427 |
| ETIM 7.0 | EC000211 |
| ECLASS 8.0 | 27142421 |
Why Proax for Rittal 2564200?
Proax is an authorized distributor of Rittal 2564200 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
