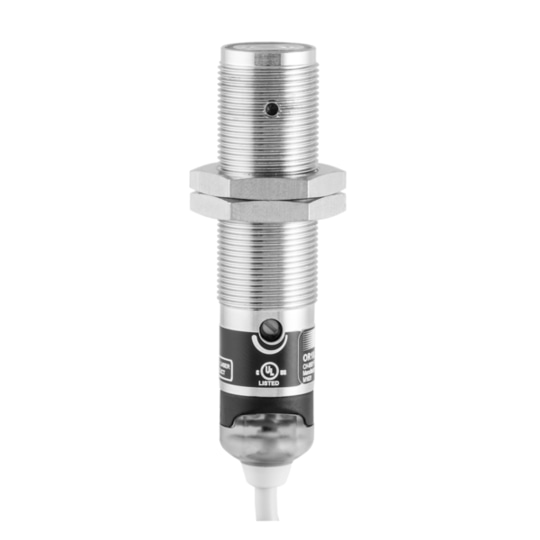

Diffuse sensors with intensity difference - standard
- intensity difference
- 10 … 300 mm
- pulsed red laser diode
- NPN complementary
- potentiometer, 270°
- cable 4 pin, 2 m
- -10 … 55 °C
- IP 67
Documents
Technical Specifications
General data
| Type | Intensity difference |
| Sensing distance Tw | 10 … 300 mm |
| Power on indication | LED green |
| Output indicator | LED yellow |
| Sensing distance adjustment | Potentiometer, 270° |
| Distance to focus | 100 mm |
| Suppression of reciprocal influence | Yes |
Light Source
| Light Source | Pulsed red laser diode |
| Laser class | 1 |
| Wave length | 630 nm |
Electrical data
| Response time / release time | < 0.34 ms |
| Voltage supply range +Vs | 10 … 30 VDC |
| Current consumption max. (no load) | 45 mA |
| Current consumption typ. | 35 mA |
| Voltage drop Vd | <2 VDC |
| Output function | Light / dark operate |
| Output circuit | NPN complementary |
| Output Current | 100 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
Mechanical data
| Width / diameter | 18 mm |
| Height / length | 77 mm |
| Design | Cylindrical threaded |
| Housing Material | Brass nickel plated |
| Front (optics) | PMMA |
| Connection types | Cable 4 pin, 2 m |
Ambient conditions
| Protection class | IP 67 |
| Operating Temperature | -10 … +55 °C |
Why Proax for Baumer Group OR18.ZL-NV1P.7BCV/B013?
Proax is the authorized distributor of Baumer Group OR18.ZL-NV1P.7BCV/B013. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | OR18ZLNV1P7BCVB013 |
| Pack Size | 1 |
