Name: 1180722
Brand: Phoenix Contact
SKU: PHX1180722

Length of Cable

Number of Positions

Cable type (abbreviation)

UL AWM style

Signal type/category

Cable structure

Conductor Cross Section

AWG Signal Line

Conductor structure signal line

Core diameter including insulation

Wire colors

Twisted pairs

Overall twist

Shielding

Optical shield covering

External sheath, color

External cable diameter D

Number of bending cycles

Minimum bending radius, drag chain applications

Torsion force

Torsion cycles

Torsional frequency

Ambient Temperature (Operation)

Outer sheath, material

Material conductor insulation

Conductor material

Wave impedance

Near end crosstalk attenuation (NEXT)

Return loss (RL)

Cable impedance

Nominal voltage, cable

Test voltage, cable

Flame resistance

Other resistance

Shielded

Request replacement

Estimated Lead Time

We'll send you an email with the lead time.
Note: We only deliver to Canada and US.

Request for lead time

{ manufacturer } Availability

Order { manufacturer } { mpn } { name } online at Proax. Authorized distributor offering fast shipping and local pickup across Canada.

Buy { manufacturer } { mpn } { name }

We are committed to protecting your privacy and security. We use Stripe, a PCI level 1 certified payment processor and do not sell or share any of your financial information.

 Our highly skilled in-house technical team is ready to assist with any technical needs.

<h3>WIREFOX SAC - Stripping tool</h3><p>Stripping pliers, for halogen-free sensor/actuator cables (SAC cables), with PUR and PVC insulation, from Ø of 4.4 to 7 mm, any stripping length</p><ul><li>WIREFOX ... stripping pliers feature an automatic adjustment mechanism for a wide range of different types of insulation and conductor diameters</li></ul>

1212623

<h3>Cable reel - NBC-2X2X24-OE-OE-93F-300,0 SH</h3><p>By the meter, Cable reel, Ethernet CAT5e, shielded, TPE, Teal, 4-wire (2x2xAWG24/7; SF/UTP), color single wire: white/orange-orange, white/green-green, cable length: 300 m, highly flexible</p>

1180722

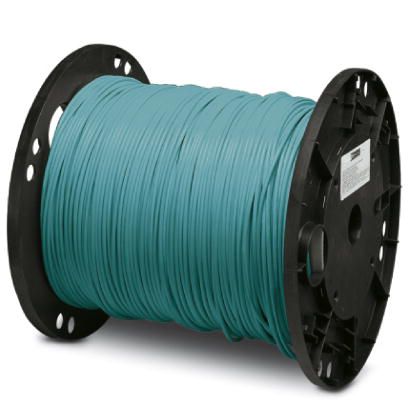

Cable reel - NBC-2X2X24-OE-OE-93F-300,0 SH

Phoenix Contact

1180722

Cable reel - NBC-2X2X24-OE-OE-93F-300,0 SH

Dimensions

General data

Cable

Why Proax for Phoenix Contact 1180722?

Cable type (abbreviation)	93F
UL AWM style	2463 (80 °C / 600 V)
Signal type/category	Ethernet CAT5e (TIA 568B)
Cable structure	2x2xAWG24/7; SF/UTP
Conductor Cross Section	2x 2x 0.2 mm²
AWG Signal Line	24
Conductor structure signal line	7x 0.20 mm (7x32)
Core diameter including insulation	1.2 mm
Wire colors	white/orange-orange, white/green-green
Twisted pairs	2 cores to the pair
Overall twist	2 pairs to the core
Shielding	Aluminum-lined polyester foil, tinned copper braided shield
Optical shield covering	75 %
External sheath, color	Teal
External cable diameter D	6.7 mm ±0.25 mm
Number of bending cycles	1000000
Minimum bending radius, drag chain applications	10 x D
Number of bending cycles	20000000
Minimum bending radius, drag chain applications	20 X D
Torsion force	1 lb. load
Torsion cycles	3000000
Torsional frequency	71 (cycles/min)
Ambient Temperature (Operation)	20 °C
Outer sheath, material	TPE
Material conductor insulation	PE
Conductor material	Tin-plated Cu litz wires
Wave impedance	100 Ω ±15 Ω (at 100 MHz)
Near end crosstalk attenuation (NEXT)	50 dB (with 100 MHz (IEC 62153-4-9))
Return loss (RL)	20 dB (at 10 МHz (+6LOG))
Return loss (RL)	26 dB (at 20 МHz)
Return loss (RL)	26 dB (at 100 MHz (-5LOG))
Cable impedance	100 Ω ±15 Ω (at 1 ... 100 MHz)
Nominal voltage, cable	600 V
Test voltage, cable	2000 V
Flame resistance	VW-1
Other resistance	Resistant to welding splashes Abrasion and oil resistance
Other resistance	UV resistant CMX outdoor
Ambient Temperature (Operation)	-40 °C ... 80 °C (Cable, flexible installation)
Shielded	yes
