9344350
Official DistributorBy Rittal
SKU
RIT9344350
Weight
4.16 kg

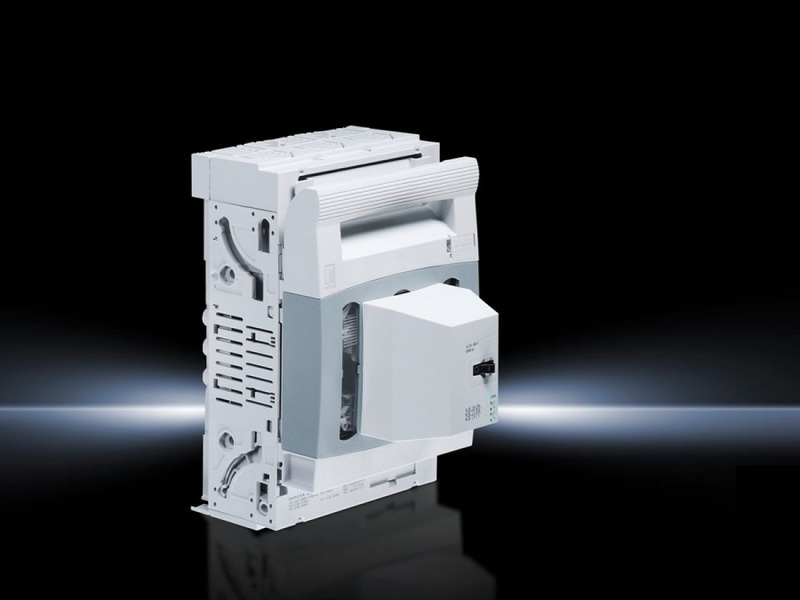

SV NH fuse-switch disconnector, size 3, 630 A, 690 V, 3-pole, screw M10, with electromechanical fuse monitoring, for mounting plate assembly
Technical Specifications
Clamping area for laminated copper bars
| Width | 50 mm |
| Height | 10 mm |
Color
| Chassis | RAL 7035 |
| Cover | RAL 7035/7001 |
Dimensions
| Width | 250 mm |
| Height | 298 mm |
Material
| Contact tracks | Electrolytic copper, silver-plated |
| for mounting plate assembly | Yes |
| Cable outlet | Top/bottom |
| Type of connection (electrical) | Screw M10 |
| Rated operating current max. | 630 A |
| For NH size | 3 |
| Test specification | IEC 60 947-3 |
| Connection for round conductor cross-sections | 10 ‐ 300 mm² |
| Rated operating voltage | 690 V, 3~ |
| Number of Poles | 3-pole |
| Weight/packaging unit | 4.16 kg |
| Copper weight (kg per piece) | 1.06 |
| Customs tariff number | 85369095 |
| EAN | 4028177540750 |
| ETIM 7.0 | EC001040 |
| ECLASS 8.0 | 27371401 |
Why Proax for Rittal 9344350?
Proax is an authorized distributor of Rittal 9344350 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
