9344010
Official DistributorBy Rittal
SKU
RIT9344010
Weight
0.76 kg

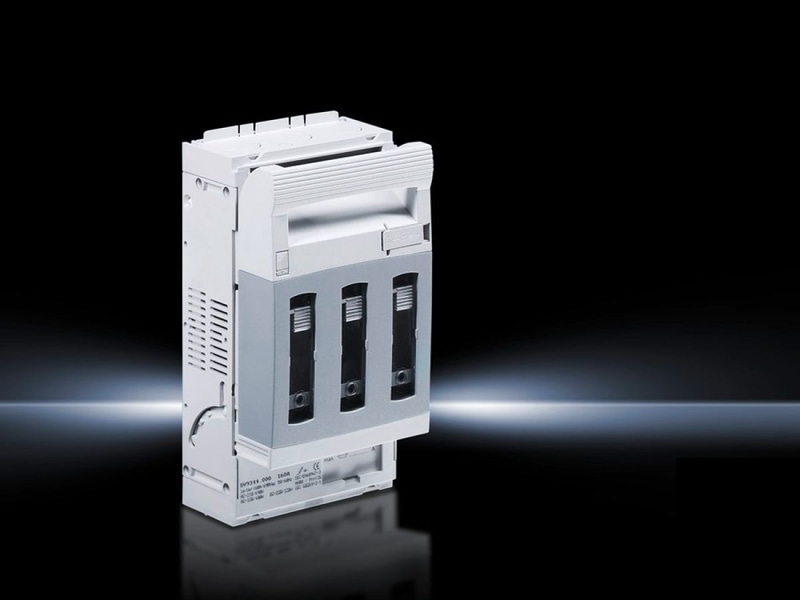

SV NH fuse-switch disconnector, size 00, 160 A, 690 V, 3-pole, screw M8, for mounting plate assembly
Technical Specifications
Clamping area for laminated copper bars
| Width | 20 mm |
| Height | 5 mm |
Color
| Chassis | RAL 7035 |
| Cover | RAL 7035/7001 |
Dimensions
| Width | 106 mm |
| Height | 194 mm |
Material
| Contact tracks | Electrolytic copper, silver-plated |
| for mounting plate assembly | Yes |
| Cable outlet | Top/bottom |
| Type of connection (electrical) | Screw M8 |
| Rated operating current max. | 160 A |
| For NH size | 00 |
| Note | The technical data may vary in the case of UR applications. UR applications only in conjunction with "Special Purpose Fuses". |
| Test specification | IEC 60 947-3 |
| Connection for round conductor cross-sections | 10 ‐ 95 mm² |
| Rated operating voltage | 690 V, 3~ |
| Number of Poles | 3-pole |
| Weight/packaging unit | 0.76 kg |
| Copper weight (kg per piece) | 0.15 |
| Customs tariff number | 85369095 |
| EAN | 4028177540514 |
| ETIM 7.0 | EC001040 |
| ECLASS 8.0 | 27371401 |
Why Proax for Rittal 9344010?
Proax is an authorized distributor of Rittal 9344010 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
