9344130
Official DistributorBy Rittal
SKU
RIT9344130
Weight
2.34 kg

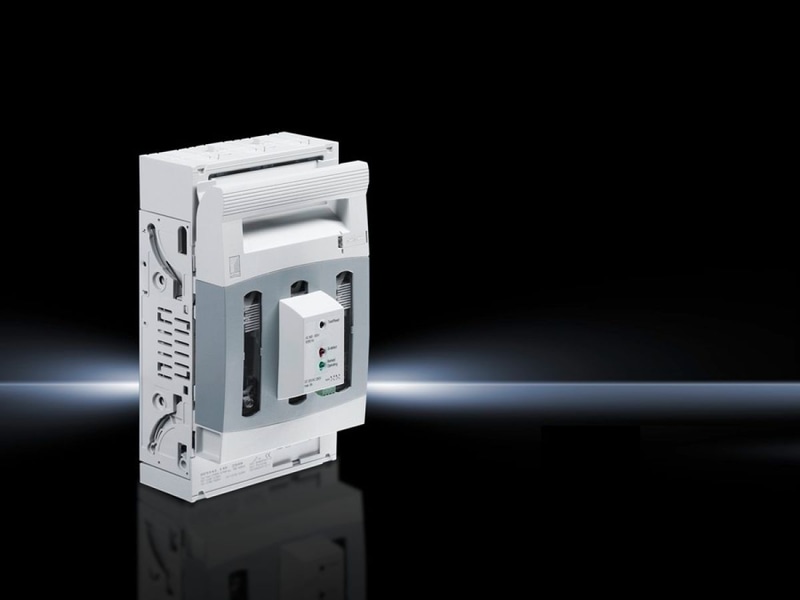

SV NH fuse-switch disconnector, size 1, 250 A, 400-690 V, 3-pole, screw M10, with electronic fuse monitoring, for mounting plate assembly
Technical Specifications
Clamping area for laminated copper bars
| Width | 32 mm |
| Height | 10 mm |
Color
| Chassis | RAL 7035 |
| Cover | RAL 7035/7001 |
Dimensions
| Width | 184 mm |
| Height | 298 mm |
Material
| Contact tracks | Electrolytic copper, silver-plated |
| for mounting plate assembly | Yes |
| Cable outlet | Top/bottom |
| Type of connection (electrical) | Screw M10 |
| Rated operating current max. | 250 A |
| For NH size | 1 |
| Test specification | IEC 60 947-3 |
| Connection for round conductor cross-sections | 10 ‐ 150 mm² |
| Rated operating voltage | 400 V - 690 V, 3~ |
| Number of Poles | 3-pole |
| Weight/packaging unit | 2.34 kg |
| Copper weight (kg per piece) | 0.3 |
| Customs tariff number | 85365080 |
| EAN | 4028177540620 |
| ETIM 7.0 | EC001040 |
| ECLASS 8.0 | 27371401 |
