9343030
Official DistributorBy Rittal
SKU
RIT9343030
Weight
1.027 kg

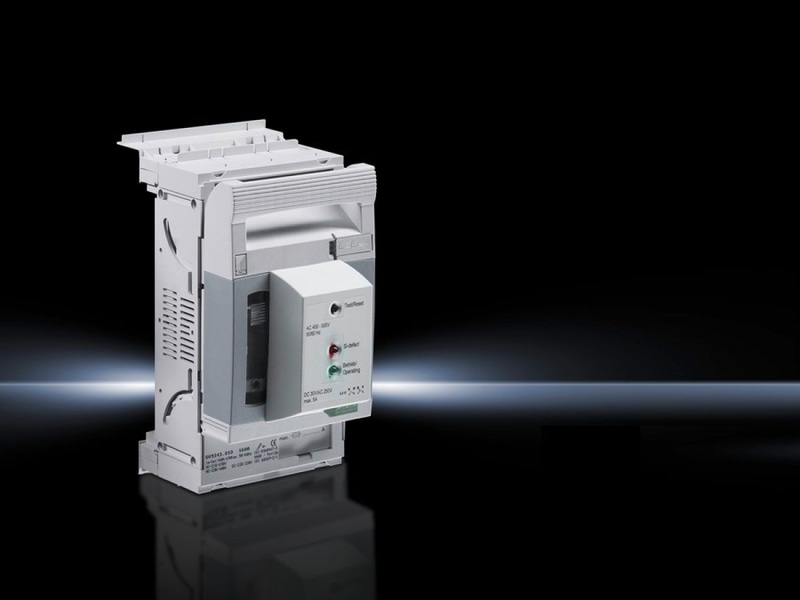

SV NH fuse-switch disconnector, size 00, 160 A, 400-690 V, 3-pole, screw M8, with electronic fuse monitoring
Technical Specifications
Clamping area for laminated copper bars
| Width | 20 mm |
| Height | 5 mm |
Color
| Chassis | RAL 7035 |
| Cover | RAL 7035/7001 |
Dimensions
| Width | 106 mm |
| Height | 194 mm |
Material
| Contact tracks | Electrolytic copper, silver-plated |
Suitable for busbars
| with cross-section height | 5, 10 mm |
| For bar systems with center-to-center spacing | 60 mm |
| Cable outlet | Top/bottom |
| Type of connection (electrical) | Screw M8 |
| Rated operating current max. | 160 A |
| For NH size | 00 |
| Test specification | IEC 60 947-3 |
| Connection for round conductor cross-sections | 10 ‐ 95 mm² |
| Rated operating voltage | 400 V - 690 V, 3~ |
| Number of Poles | 3-pole |
| Weight/packaging unit | 1.027 kg |
| Copper weight (kg per piece) | 0.2 |
| Customs tariff number | 85369095 |
| EAN | 4028177540293 |
| ETIM 7.0 | EC001040 |
| ECLASS 8.0 | 27371401 |
