5030651
Official DistributorSKU
PHX5030651
MPN
GTF 76 LEUCHTK. TRANSPARENT
Weight
0 kg
Series GTF

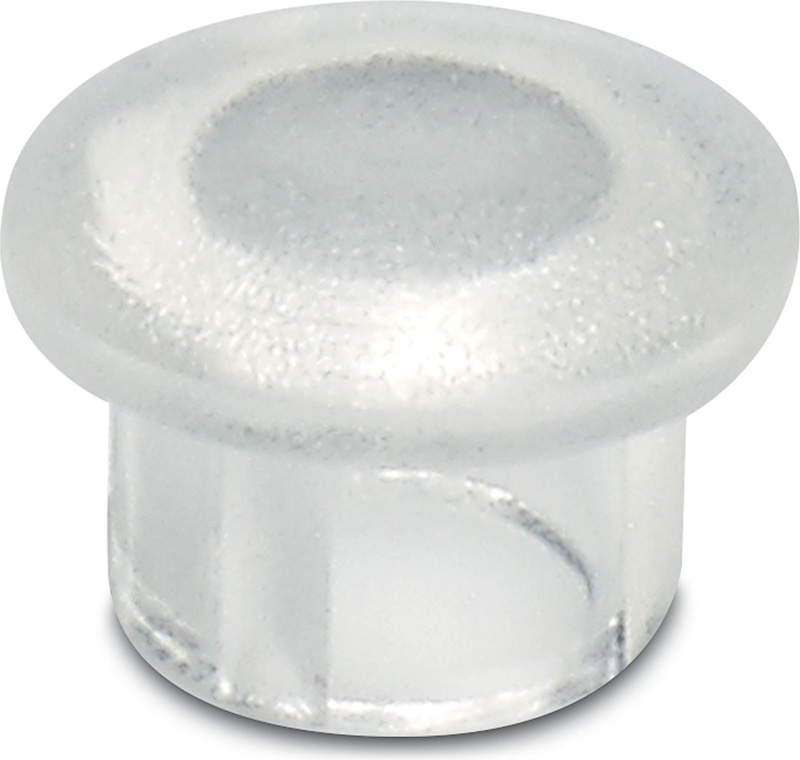

GTF 76 LEUCHTK. TRANSPARENT - Light cap
Light cap, height: 4 mm, diameter: 6 mm, color: transparent
Technical Specifications
Dimensions
| Height | 4 mm |
| Diameter | 6 mm |
| Hole diameter | 4.2 mm |
Internal dimensions
| Internal diameter | 3 mm |
Material specifications
| Color | transparent |
| Material | ABS |
| Flammability rating according to UL 94 | V2 |
Ambient conditions
| Ambient Temperature (Operation) | -60 °C ... 85 °C |
| Ambient temperature (storage/transport) | -25 °C ... 55 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Why Proax for Phoenix Contact 5030651?
Proax is an authorized distributor of Phoenix Contact 5030651 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 100 |
Recommended
GTF 76/230 - Disconnect terminal block, nom. voltage: 250 V, nominal current: 41 A, 1 level, connection method: Screw connection, Rated cross section: 6 mm2, cross section: 0.5 mm2 - 10 mm2, mounting: NS 35/7,5, NS 35/15, NS 32, color: gray
GTF 76/ 48 - Disconnect terminal block, nom. voltage: 24 V, nominal current: 41 A, connection method: Screw connection, Rated cross section: 6 mm2, cross section: 0.5 mm2 - 10 mm2, mounting: NS 35/7,5, NS 35/15, NS 32, color: gray
