Series Connection Adapters

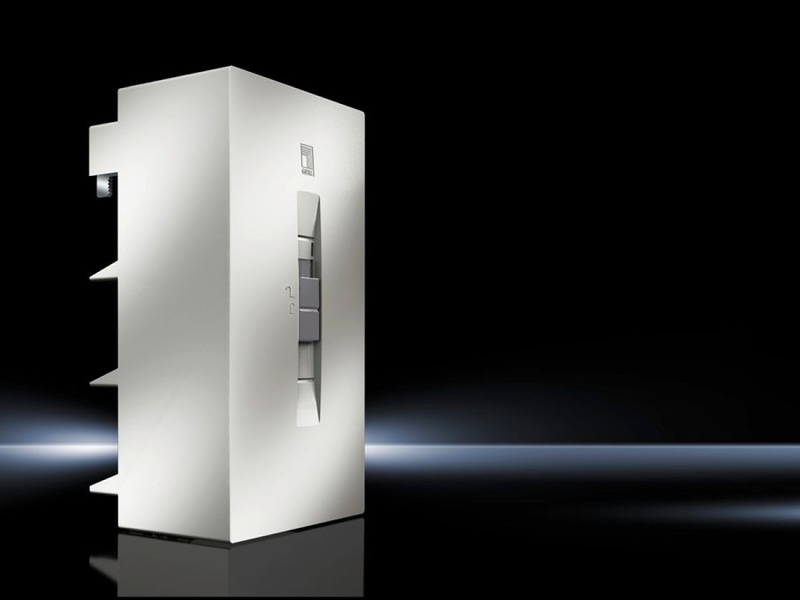

SV Connection adaptor, 800 A, 690 V, 3-pole, cable outet top/bottom, round conductor connection 95-300 mm², clamping area WH: 33x20 mm
Connection Adapters
For connecting round conductors or laminated copper bars. For bar systems with 60 mm center-to-center spacing.
Technical Specifications
Dimensions
| Width | 129 mm |
| Height | 246 mm |
Material
| Cover | ABS |
| Punched section | Polyamide |
Suitable for busbars
| with cross-section height | 5, 10 mm |
| Color | RAL 7035 |
| Rated current max. | 800 A |
| Rated operating voltage | 690 V, 3~ |
| Cable outlet | Top/bottom |
| For bar systems with center-to-center spacing | 60 mm |
| Note | The technical data may vary for UL applications. |
| Number of Poles | 3-pole |
| Clamping area for laminated copper bars (W x H) | 33 x 20 mm |
| Connection of round conductors, fine wire with wire end ferrule | 95 ‐ 185 mm² |
| Connection of round conductors, multi-wire | 95 ‐ 300 mm² |
| Weight/packaging unit | 2 kg |
| Copper weight (kg per piece) | 0.358 |
| Customs tariff number | 85369010 |
| EAN | 4028177503663 |
| ETIM 7.0 | EC001531 |
| ECLASS 8.0 | 27370304 |
