Official DistributorBy Rittal
SKU
Weight
0.22 kg
Series Connection Adapters

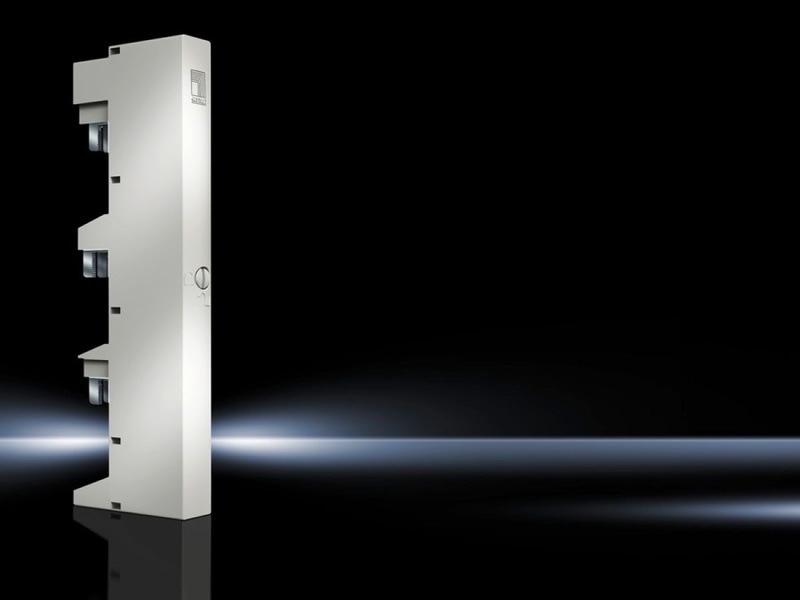

SV Connection adaptor, 63 A, 690 V, 3-pole, cable outet bottom, round conductor connection 2,5-10 mm²
Connection Adapters
For connecting round conductors or laminated copper bars. For bar systems with 60 mm center-to-center spacing.
Technical Specifications
Dimensions
| Width | 20 mm |
| Height | 215 mm |
Material
| Cover | ABS |
| Punched section | Polyamide |
Suitable for busbars
| with cross-section height | 5, 10 mm |
| Color | RAL 7035 |
| Rated current max. | 63 A |
| Rated operating voltage | 690 V, 3~ |
| Cable outlet | Bottom |
| For bar systems with center-to-center spacing | 60 mm |
| Note | The technical data may vary for UL applications. |
| Number of Poles | 3-pole |
| Connection of round conductors, fine wire with wire end ferrule | 2.5 ‐ 10 mm² |
| Connection of round conductors, multi-wire | 2.5 ‐ 10 mm² |
| Weight/packaging unit | 0.22 kg |
| Copper weight (kg per piece) | 0.019 |
| Customs tariff number | 85369010 |
| EAN | 4028177503601 |
| ETIM 7.0 | EC001531 |
| ECLASS 8.0 | 27370304 |
Why Proax for Rittal 9342210?
Proax is an authorized distributor of Rittal 9342210 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
