Official DistributorSKU
MPN
HC-RBO 16-FE
Weight
0.05 kg
Series HC-RBO

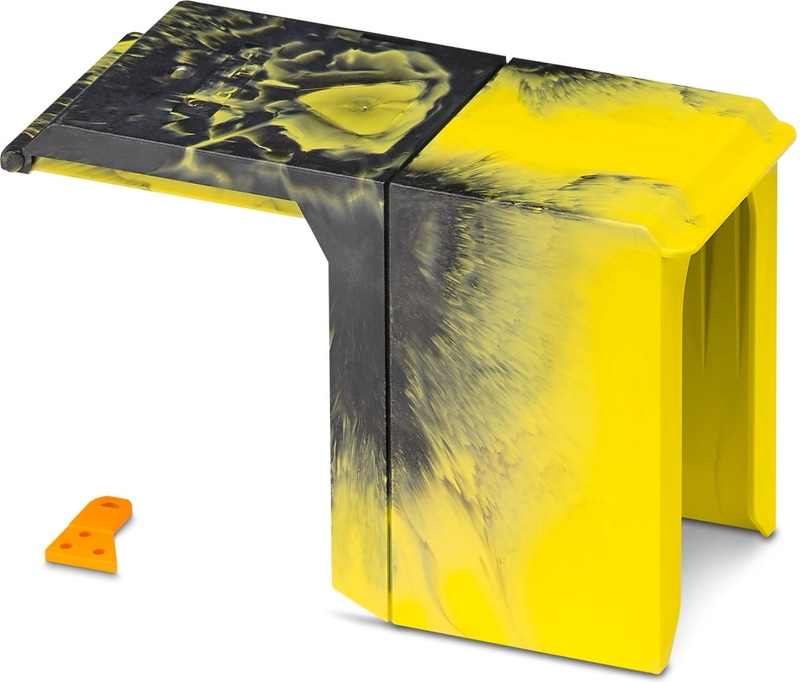

HC-RBO 16-FE - Covering hood
Covering hood, depth: 33 mm, width: 54.8 mm, height: 164 mm, color: black/yellow
Technical Specifications
Dimensions
| Width | 54.8 mm |
| Height | 164 mm |
| Depth | 33 mm |
Material specifications
| Color | black/yellow |
| Material | PA |
| Flammability rating according to UL 94 | V0 |
Ambient conditions
| Ambient Temperature (Operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Why Proax for Phoenix Contact 3247997?
Proax is an authorized distributor of Phoenix Contact 3247997 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 6 |
