Name: 3246858
Brand: Phoenix Contact
SKU: PHX3246858
Price: 5.8900 CAD
Availability: BackOrder

Official Distributor

By Phoenix Contact

SKU

MPN

PS 6-VT-SD

Weight

0.009 kg

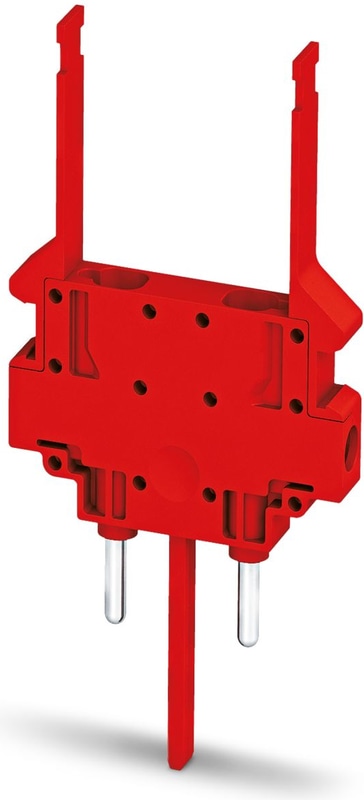

PS 6-VT-SD - Test disconnectors

Test disconnectors, contacts after the signal isolation, nom. voltage: 250 V, nominal current: 6 A, number of positions: 1, connection method: Screw connection, cross section: 0.5 mm2- 2.5 mm2, color: red

Product properties

Number of Positions	1
Potentials	1

Insulation characteristics

Overvoltage category	III
Degree of pollution	3

Electrical properties

Rated surge voltage

6 kV

Connection data

Nominal cross section	2.5 mm²
Rated cross section AWG	14

Level 1

Screw thread	M3
Tightening torque	0.5 ... 0.6 Nm
Stripping length	7 mm
Connection in acc. with standard	IEC 60947-7-1
Conductor cross section rigid	0.5 mm² ... 2.5 mm²
Cross section AWG	20 ... 14 (converted acc. to IEC)
Conductor cross section flexible	0.5 mm² ... 2.5 mm²
Conductor cross section, flexible [AWG]	20 ... 14 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.5 mm² ... 1.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.5 mm² ... 1.5 mm²
Nominal Current	6 A
Maximum Load Current	8 A
Nominal Voltage	250 V

Dimensions

Width	6.2 mm
Height	39.3 mm
Depth	78.7 mm
Length	39.3 mm

Material specifications

Color	red
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))	125 °C
Relative insulation material temperature index (Elec., UL 746 B)	125 °C

Standards and Regulations

Connection in acc. with standard

IEC 60947-7-1
