3069948
Official DistributorSKU
PHX3069948
MPN
FBP-3/11 TR
Weight
0.08 kg
Series FBP

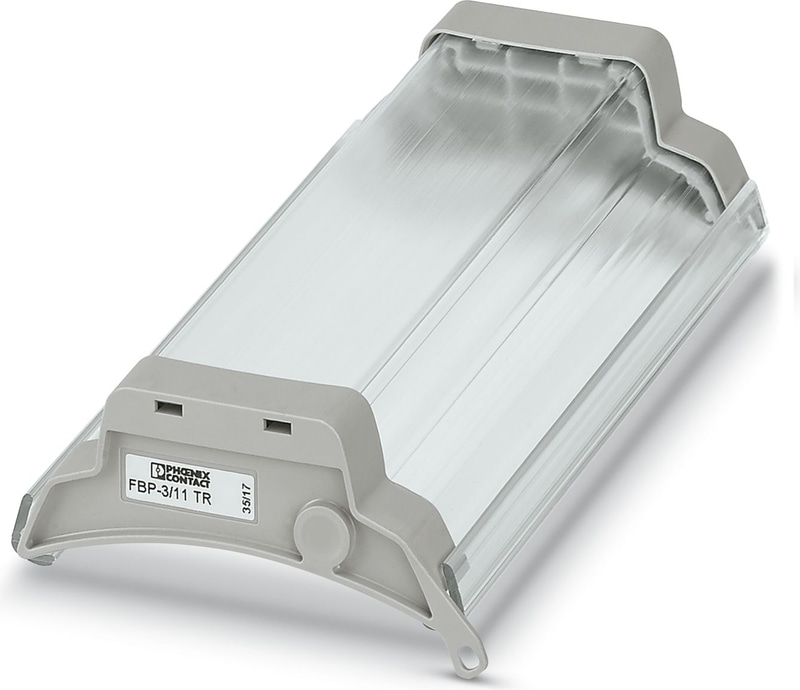

FBP-3/11 TR - Cover profile
Cover profile, can optionally be sealed, depth: 32 mm, width: 74.1 mm, height: 122.3 mm, color: transparent
Technical Specifications
Insulation characteristics
| Overvoltage category | III |
Dimensions
| Width | 74.1 mm |
| Height | 122.3 mm |
| Depth | 32 mm |
Material specifications
| Color | transparent |
| Flammability rating according to UL 94 | V0 |
| Insulating material group | I |
| Insulating material | PVC |
Ambient conditions
| Ambient Temperature (Operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Why Proax for Phoenix Contact 3069948?
Proax is an authorized distributor of Phoenix Contact 3069948 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
