3069947
Official DistributorSKU
PHX3069947
MPN
FBP-3/9 TR
Weight
0.064 kg
Series FBP

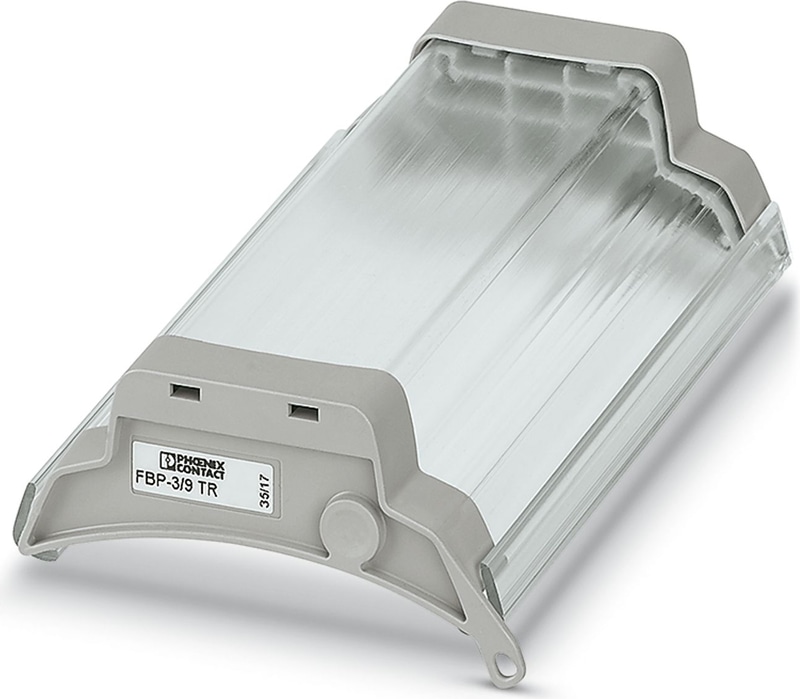

FBP-3/9 TR - Cover profile
Cover profile, can optionally be sealed, depth: 32 mm, width: 74.1 mm, height: 106 mm, color: transparent
Documents
Technical Specifications
Insulation characteristics
| Overvoltage category | III |
Dimensions
| Width | 74.1 mm |
| Height | 106 mm |
| Depth | 32 mm |
Material specifications
| Color | transparent |
| Flammability rating according to UL 94 | V0 |
| Insulating material group | I |
| Insulating material | PVC |
Ambient conditions
| Ambient Temperature (Operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Why Proax for Phoenix Contact 3069947?
Proax is an authorized distributor of Phoenix Contact 3069947 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
