3032892
Official DistributorSKU
PHX3032892
MPN
PSBJ-GSK/S-N GN
Weight
0.008 kg

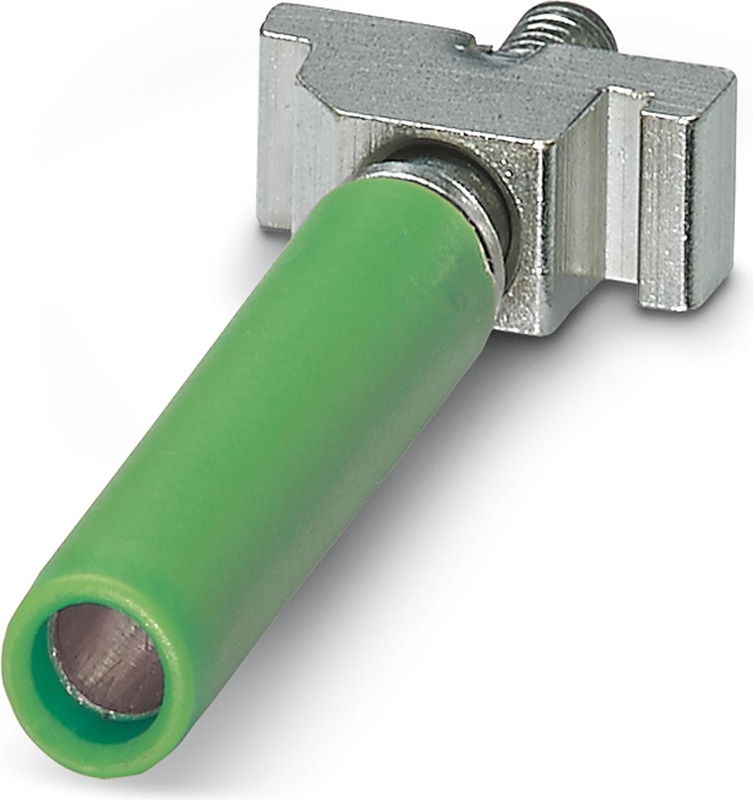

PSBJ-GSK/S-N GN - Test plug strip
Test plug strip, For use in UGSK/S slide-type terminal block, with slide, color: green
Technical Specifications
Notes
| Note on application | For use in UGSK/S slide-type terminal block |
Connection data
| Test socket torque | 0.6 |
Dimensions
| Width | 6 mm |
| Height | 4.8 mm |
| Depth | 44 mm |
Material specifications
| Color | green |
| Contact Material | PE-LD, silver-plated brass |
Ambient conditions
| Ambient Temperature (Operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
