Name: 3030328
Brand: Phoenix Contact
SKU: PHX3030328
Price: 10.0100 CAD
Availability: BackOrder

Official Distributor

By Phoenix Contact

SKU

MPN

FBSL 10-8

Weight

0.013 kg

Series FBSL

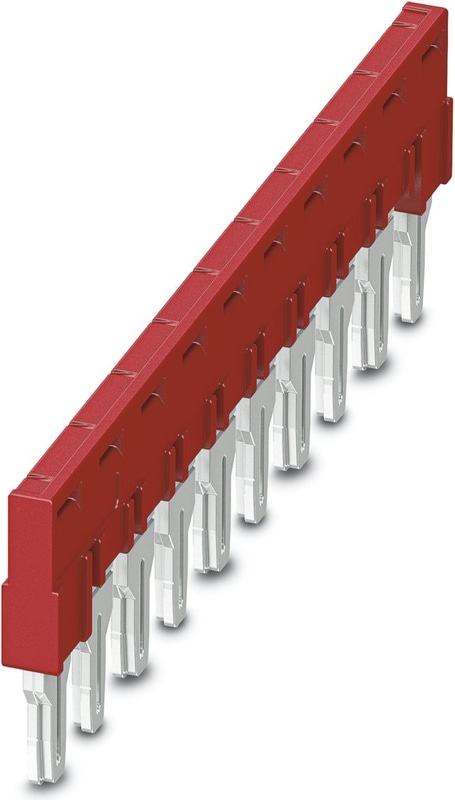

FBSL 10-8 - Plug-in bridge

Plug-in bridge, pitch: 8.2 mm, number of positions: 10, color: red

The 2- to 50-pos. jumpers can bridge up to 50 terminal blocks in the two bridge shafts of the CLIPLINE complete system in one step

Product properties

Number of Positions	10
Pitch	8.2 mm

Electrical properties

Maximum Load Current

41 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.)

Connection data

Maximum Load Current

Dimensions

Width	80.3 mm
Height	20.38 mm
Depth	20.38 mm
Pitch	8.2 mm

Material specifications

Color	red
Material	Copper
Flammability rating according to UL 94	V0
Insulating material	PA

Mounting

Mounting Type

Plug-in mounting

Proax is an authorized distributor of Phoenix Contact 3030328 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time

Highly Trained Staff

Live Chat

Technical Support

Local Inventory

60+ Years Experience
