HCS-C MEDIUM 1W 3AA 1 1 7035 - Electronics housing

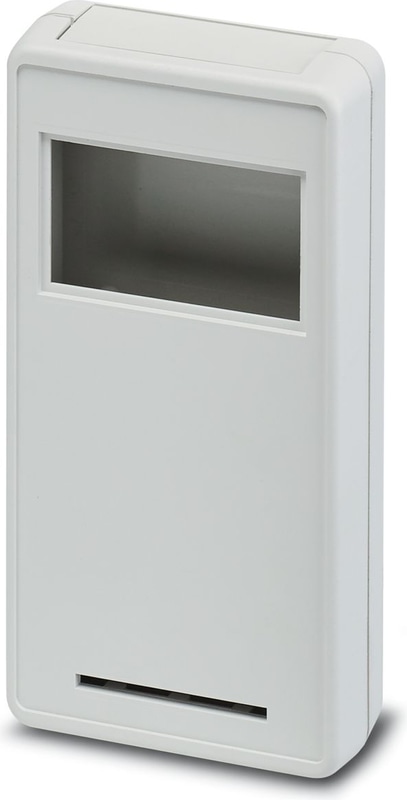

Handheld housing, C-Medium, light gray, consisting of two half shells, two front plates, screws. Front 1.1 mm recessed, with window and keypad slot, battery compartment cover and battery contacts for 3 AA batteries
- Suitable for handheld devices
- Easy integration of LCD displays and membrane keypads
- Ergonomic straight or staggered housing design
- Fast mounting, thanks to the modular design
Documents
Technical Specifications
Product properties
| Housing type | Handheld housing |
| Housing series | HCS |
| Type | straight |
| Ventilation openings present | no |
| Battery compartment | 3 x AA |
Display
| Diagonal | 2.8 in. / 7 cm (Window for display) |
Dimensions
| Width | 87 mm |
| Height | 164 mm |
| Depth | 30.5 mm |
| Dimensions | 78 mm x 152 mm x 1.1 mm (Recessed area on front) |
| Dimensions | 63 mm x 34 mm (Window for display) |
| Dimensions | 67 mm x 38 mm x 1.7 mm (Holder for cover lens) |
| Front with faceplate | top, 1 x (62.8 mm x 21.9 mm) |
| Front with faceplate | bottom, 1 x (62.8 mm x 21.9 mm) |
PCB design
| PCB thickness | 1.4 mm ... 1.8 mm |
Material specifications
| Color (Housing) | light gray (RAL 7035) |
| Flammability rating according to UL 94 | V0 |
| CTI according to IEC 60112 | 400 ≤ CTI < 600 |
| Insulating material | II |
| Housing Material | ABS |
| Surface characteristics | untreated |
Glow-wire test
| Specification | IEC 60695-2-11:2014-02 |
| Temperature | 850 °C |
| Time of exposure | 30 s |
Thermal stability / ball thrust test
| Specification | IEC 60695-10-2:2014-02 |
| Temperature | 80 °C |
| Test duration | 1 h |
| Force | 20 |
Ambient conditions
| Max. IP code to attain | IP40 |
| Ambient Temperature (Operation) | -40 °C ... 80 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 80 °C |
| Relative humidity (storage/transport) | 95 % |
PCB data
| Number of PCB holders | 2 |
| Thickness of the PCB | 1.4 mm ... 1.8 mm |
Mounting
| Tightening torque / speed | Screw connection between housing halves: 0.25 - 0.3 Nm / 500 - 1000 rpm |
