1628353
Official DistributorSKU
PHX1628353
Weight
0.004 kg

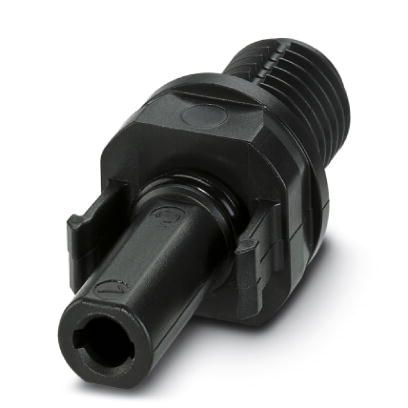

Photovoltaic connector - PV-FT-C3F-HSG
Panel feed-through, Range of articles: Sunclix, Photovoltaic connector, housing material: PPE, color: black, number of positions: 1, rated voltage: 1500, Connection method: Crimp, Type of contact: Socket
Technical Specifications
Item properties
| Range of articles | Sunclix |
| Brief article description | Photovoltaic connector |
| Color | black |
| Connection Method | Crimp |
| Type of contact | Socket |
| Number of Positions | 1 |
Product dimensions
| Width | 18.6 mm |
| Height | 18.6 mm |
| Length | 43.2 mm |
| Rated voltage | 1500 (DC voltage) |
| Protection class | II |
Connection data
| Stripping length of the individual wire | 8 mm |
| Torque | 1.8 Nm ±0.1 Nm |
Environmental data
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
| Ambient temperature (assembly) | -25 °C ... 50 °C |
Mechanical tests
| Insertion force | 45 N ±10 N |
Service life tests
| Degree of Protection | IP20 |
| Insertion/withdrawal cycles | 100 |
| Contact surface material | Ag |
| Contact Material | Cu |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Accessories
PV-FT-C NUT BK - Screw connection, Range of articles: SUNCLIX, Packing unit: 100 pcs. (polybag)
PV-C PROTECTION CAP - Protective cap, Range of articles: SUNCLIX, color: black, self-sealing, without interlock, set consisting of: 1 protective cap for connector side and 1 protective cap for coupling side
CRIMPFOX-P SR 6 - Crimping pliers, for SUNCLIX solar crimp connectors 2.5 ... 6 mm2, unlockable pressure lock, precise parallel crimping, lateral entry, B crimp, incl. positioning tool
