1628352
Official DistributorSKU
PHX1628352
Weight
0.007 kg

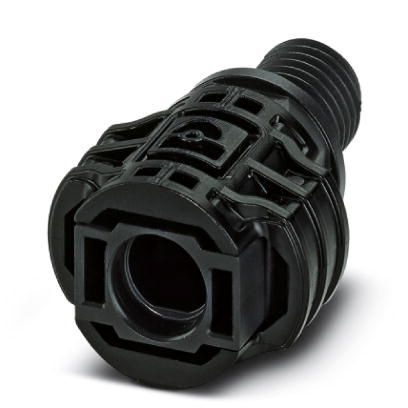

Photovoltaic connector - PV-FT-C3M-HSG
Panel feed-through, Range of articles: Sunclix, Photovoltaic connector, housing material: PPE, color: black, number of positions: 1, rated voltage: 1500, Connection method: Crimp, Type of contact: Pin
Technical Specifications
Item properties
| Range of articles | Sunclix |
| Brief article description | Photovoltaic connector |
| Color | black |
| Connection Method | Crimp |
| Type of contact | Pin |
| Number of Positions | 1 |
Product dimensions
| Width | 27.4 mm |
| Height | 20 mm |
| Length | 41.5 mm |
| Rated voltage | 1500 (DC voltage) |
| Protection class | II |
Connection data
| Stripping length of the individual wire | 8 mm |
| Torque | 1.8 Nm ±0.1 Nm |
Environmental data
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
| Ambient temperature (assembly) | -25 °C ... 50 °C |
Mechanical tests
| Insertion force | 45 N ±10 N |
Service life tests
| Degree of Protection | IP20 |
| Insertion/withdrawal cycles | 100 |
| Contact surface material | Ag |
| Contact Material | Cu |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Accessories
PV-FT-C NUT BK - Screw connection, Range of articles: SUNCLIX, Packing unit: 100 pcs. (polybag)
PV-C PROTECTION CAP - Protective cap, Range of articles: SUNCLIX, color: black, self-sealing, without interlock, set consisting of: 1 protective cap for connector side and 1 protective cap for coupling side
CRIMPFOX-P SR 6 - Crimping pliers, for SUNCLIX solar crimp connectors 2.5 ... 6 mm2, unlockable pressure lock, precise parallel crimping, lateral entry, B crimp, incl. positioning tool
Why Proax for Phoenix Contact 1628352?
Proax is an authorized distributor of Phoenix Contact 1628352 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 50 |
