1619281
Official DistributorSKU
PHX1619281
MPN
K-12 - OE/5,0-E00/M23 FK-N2
Weight
0.613 kg
Series K

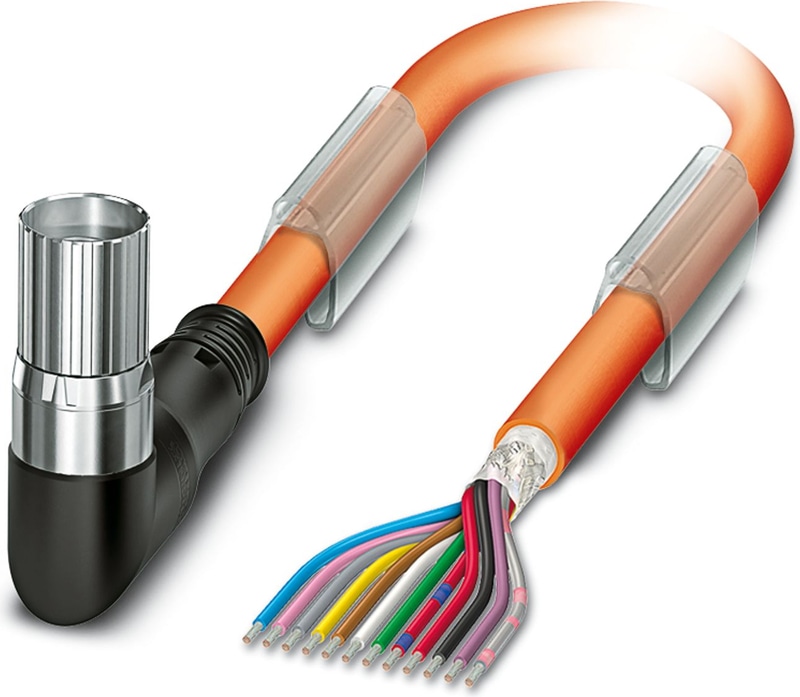

K-12 - OE/5,0-E00/M23 FK-N2 - Cable plug in molded plastic
Cable plug in molded plastic, angled, rotatable, -120° left/120° right, number of positions: 12, type of locking: Screw locking mechanism, cable length: 5 m, shielded: yes, color of outer sheath: orange RAL 2003
- Our standard: robust halogen-free PUR cable
- Simple and safe: 100% electrically tested and assembled ready for use
- Designs with preassembled cables on one or both sides
- Easy connection: angled design with configurable cable outlet direction
- High flexibility: customer-specific assemblies and cable lengths can be supplied
Technical Specifications
Connector specifications
| Type | angled, rotatable, -120° left/120° right |
| Housing Material | Zinc die-cast |
| Type of locking | Screw locking mechanism |
| Degree of Protection | IP67, when in locked state |
| No. of pos. | 12 |
| Direction of rotation | Standard |
| Insertion/withdrawal cycles | 50 |
| Contact resistance | < 0.3 mΩ |
| Max. current | 8 A |
| Voltage | 48 V AC |
| Voltage | 74 V DC |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated surge voltage | 1.5 kV |
| Ambient Temperature (Operation) | -40 °C ... 105 °C |
Cable specifications
| Cable Type | RSL9YSLC11Y |
| Shielded | yes |
| Cable structure | 4 x 2 x 0.25 mm² + 2 x 0.5 mm² |
| Cable Structure (AWG) | 24 AWG/4pr + 20 AWG/2c |
| External Cable Diameter | 8.00 mm |
| Outer sheath, material | TPU |
| Material wire insulation | PP |
| External sheath, color | orange RAL 2003 |
| Test voltage | 1 kV |
| Rated current | 9 A |
| Smallest bending radius, fixed installation | 40 mm |
| Smallest bending radius, movable installation | 60 mm |
| Ambient temperature (operation) for fixed installation | -40 °C ... 80 °C |
| Ambient temperature (operation) for flexible installation | -20 °C ... 60 °C |
Electrical properties
| Nominal current IN | 9 A |
Cable/line
| Cable Length | 5 m |
