Phoenix Contact 1582575
AllConnectorsInstallation systems
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN
QPD W 4PE2,5 9-16 M25 FC GY
Weight
0.057 kg
Series QPD-W

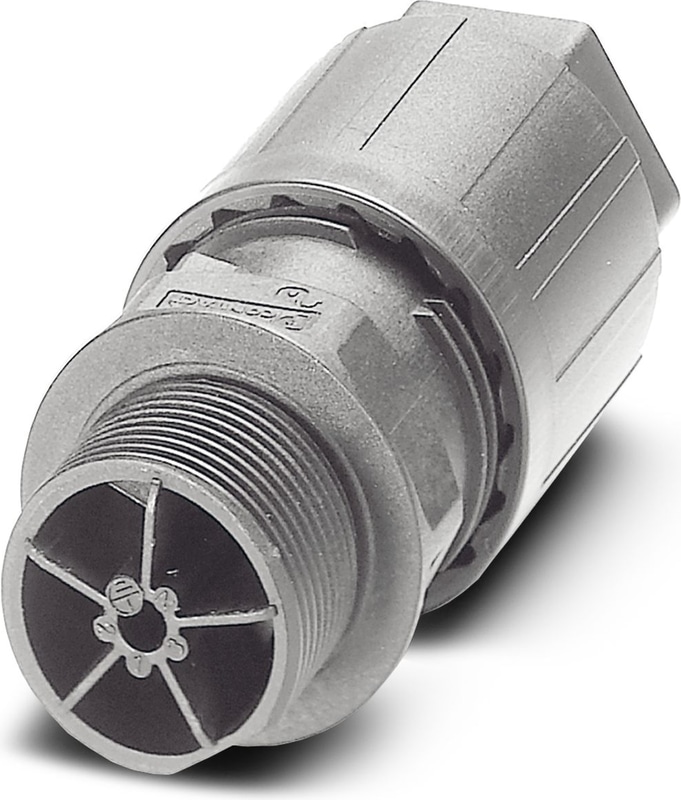

QPD W 4PE2,5 9-16 M25 FC GY - Panel feed-through

Panel feed-through, product family: QPD, connection method: Spade connection (For slip-on sleeves according to DIN 46247-2)/ IDC connection, number of positions: 4+PE, M25, Pin, 1 mm2 ... 2.5 mm2, 690 V, 20 A, PA, gray, with QUICKON nut, coding: coded, external cable diameter: 9 mm ... 16 mm

Technical Specifications

Product properties

Product familyQPD
TypeQPD 5x2,5
Number of Positions5
Connection profile4+PE
Position marking1, 2, L, N, PE
Number of Connections10
Number of connections per position1
Codingcoded

Insulation characteristics

Overvoltage categoryIII
Degree of pollution3

Connection technology

Connection method On the device sideSpade connection (For slip-on sleeves according to DIN 46247-2)
Connection method On the field sideIDC connection
Frequency of connections between conductors of the same cross sectionmax. 10

Conductor connection

Conductor cross section flexibel1 mm² ... 2.5 mm²
Conductor cross section solid1 mm² ... 2.5 mm²
Connection cross section AWG16 ... 14
Tightening torque Union nut10 Nm
Tightening torque Locking nut5 Nm
Wrench size Union nut27 mm
Wrench size Locking nut30 mm

Dimensions

Width34.6 mm
Height34.6 mm
Length71.8 mm
Diameter34.6 mm
Wrench size30 mm
Wrench size for mounting30 mm
Dimensions of slip-on connection4.8 x 0.8 mm

Electrical properties

Rated surge voltage (II/2)8 kV
Rated surge voltage (III/2)8 kV
Rated surge voltage (III/3)6 kV
Rated current20 A
Contact resistance< 3 mΩ
Rated voltage (II/2)1250 V
Rated voltage (III/2)1000 V
Rated voltage (III/3)690 V (With insulating sleeve PT/FS 4,8, 1670497 without insulating sleeve 250 V.)
Nominal voltage UN690 V AC
Nominal voltage UN690 V DC
Nominal current IN20 A

Mechanical data

Insertion/withdrawal cyclesmax. 50

Material specifications

Colorlight grey (RAL 7035)
Material HousingPA
Material ContactCu
Material Contact surfaceSilver-plated
Flammability rating according to UL 94V0
Material wire insulationPVC/PE/TPE/rubber

Cable/line

Structure of individual litz in acc. with VDE 0295 / smallest wire diameterVDE 0295 class 1 to 6/min. 0.15 mm
External Cable Diameter9 mm ... 16 mm
Wire diameter including insulation2 mm ... 3.8 mm
Position marking1, 2, L, N, PE
Material wire insulationPVC/PE/TPE/rubber

Mounting

Mounting TypeFront mounting M25

Ambient conditions

Degree of ProtectionIP66
Degree of ProtectionIP68 (2 m / 24 h)
Degree of ProtectionIP69K
Ambient Temperature (Operation)-40 °C ... 100 °C
Temperature when conductor connected-5 °C ... 50 °C
Ambient temperature (storage/transport)-40 °C ... 80 °C
Accessories
  • Phoenix Contact1670646
    1670646
    Socket wrench - QSS 27
  • Phoenix Contact1404530
    1404530
    CP-QPD 5X2,5 - Coding profile, red, for insertion into the 5-pos. QUICKON dome and connector, can be positioned in 72° increments.
  • Phoenix Contact1411401
    1411401
    Protective cap - QPD QSK GY 5X6,0 FS
  • Phoenix Contact1400270
    1400270
    Closing cap - SEALING PLUG 14X22 RD
  • Phoenix Contact1640715
    1640715
    Q-MU M25 - Nut (plastic) to lock the contact carrier from the inside of the device
