Phoenix Contact 1403726
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN
QPD W 4PE2,5 6-11 M20 0,5 GY
Weight
0.144 kg
Series QPD-W

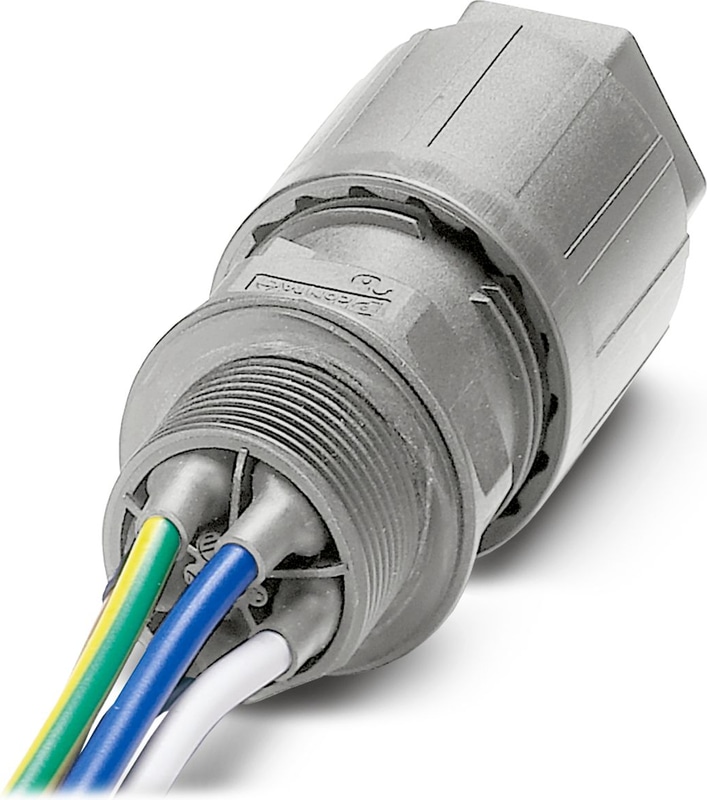

QPD W 4PE2,5 6-11 M20 0,5 GY - Panel feed-through

Panel feed-through, product family: QPD, connection method: Single wires (Welded-on)/ IDC connection, number of positions: 4+PE, M20, Pin, 1 mm2 ... 2.5 mm2, 690 V, 20 A, PA, gray, with QUICKON nut, coding: coded, external cable diameter: 6 mm ... 10 mm and 6 mm ... 11 mm, 2.5 mm2, wires cut flat at the end, cable length: 0.5 m

Technical Specifications

Product properties

Product familyQPD
TypeQPD 5x2,5
Number of Positions5
Connection profile4+PE
Position marking1, 2, L, N, PE
Number of Connections10
Number of connections per position1
Codingcoded

Insulation characteristics

Overvoltage categoryIII
Degree of pollution3

Connection technology

Connection method On the device sideSingle wires (Welded-on)
Connection method On the field sideIDC connection
Frequency of connections between conductors of the same cross sectionmax. 10

Conductor connection

Conductor cross section flexibel1 mm² ... 2.5 mm²
Conductor cross section solid1 mm² ... 2.5 mm²
Connection cross section AWG16 ... 14
Tightening torque Union nut10 Nm
Tightening torque Locking nut5 Nm
Wrench size Union nut27 mm
Wrench size Locking nut30 mm

Pin assignment

Contact | Color (signal designation) | Contact (optional)1 | BK
Contact | Color (signal designation) | Contact (optional)2 | BN
Contact | Color (signal designation) | Contact (optional)3 | GY
Contact | Color (signal designation) | Contact (optional)N | BU
Contact | Color (signal designation) | Contact (optional)PE | GNYE

Dimensions

Width34.6 mm
Height34.6 mm
Length71.8 mm
Diameter34.6 mm
Wrench size27 mm
Wrench size for mounting27 mm

Electrical properties

Rated surge voltage (II/2)8 kV
Rated surge voltage (III/2)8 kV
Rated surge voltage (III/3)6 kV
Rated current20 A
Contact resistance< 3 mΩ
Rated voltage (II/2)1000 V
Rated voltage (III/2)1000 V
Rated voltage (III/3)690 V
Nominal voltage UN690 V AC
Nominal voltage UN690 V DC
Nominal current IN20 A

Material specifications

Material HousingPA
Material ContactCu
Material Contact surfaceSilver-plated
Flammability rating according to UL 94V0
Material wire insulationPVC / PE

Cable/line

Cable Length0.5 m
Structure of individual litz in acc. with VDE 0295 / smallest wire diameterVDE 0295 class 1 to 6/min. 0.15 mm
External Cable Diameter6 mm ... 10 mm
External Cable Diameter6 mm ... 11 mm
Wire diameter including insulation2 mm ... 3.8 mm
Position marking1, 2, L, N, PE
Single wire, colorblack, brown, gray, blue, green/yellow
Cable cross section2.5 mm²
Material wire insulationPVC/PE/TPE/rubber

Mounting

Mounting TypeFront mounting M20

Ambient conditions

Degree of ProtectionIP66
Degree of ProtectionIP68 (2 m / 24 h)
Degree of ProtectionIP69K
Ambient Temperature (Operation)-40 °C ... 100 °C
Temperature when conductor connected-5 °C ... 50 °C
Ambient temperature (storage/transport)-40 °C ... 80 °C
