Official DistributorSKU
MPN
QPD W 4PE2,5 M25 FC BK
Weight
0.033 kg
Series QPD-W

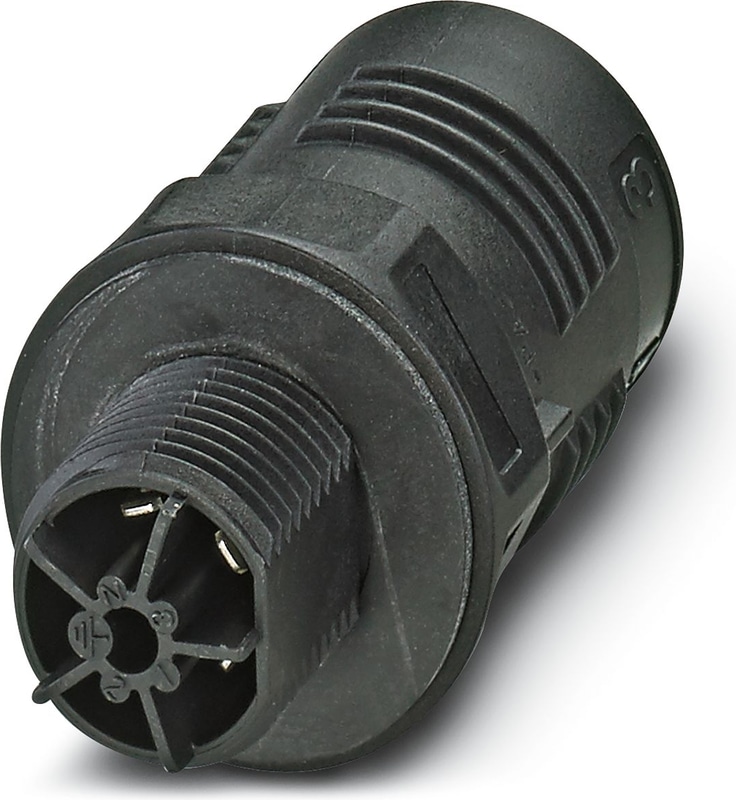

QPD W 4PE2,5 M25 FC BK - Panel feed-through
Panel feed-through, product family: QPD, connection method: Spade connection (For slip-on sleeves according to DIN 46247-2), number of positions: 4+PE, M25, Pin, 1 mm2 ... 2.5 mm2, 690 V, 20 A, PA, black, without QUICKON nut, coding: coded
- Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
- Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
- Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
- Efficient - by using panel feed-throughs, devices no longer need to be opened in order to connect cables
Technical Specifications
Product properties
| Product family | QPD |
| Type | QPD 5x2,5 |
| Number of Positions | 5 |
| Connection profile | 4+PE |
| Position marking | 1, 2, 3, N, PE |
| Number of Connections | 10 |
| Number of connections per position | 1 |
| Coding | coded |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Connection technology
| Connection method On the device side | Spade connection (For slip-on sleeves according to DIN 46247-2) |
| Frequency of connections between conductors of the same cross section | max. 10 |
Conductor connection
| Conductor cross section flexibel | 1 mm² ... 2.5 mm² |
| Conductor cross section solid | 1 mm² ... 2.5 mm² |
| Connection cross section AWG | 16 ... 14 |
| Tightening torque Union nut | 10 Nm |
| Tightening torque Locking nut | 5 Nm |
| Wrench size Union nut | 27 mm |
| Wrench size Locking nut | 30 mm |
Dimensions
| Width | 34.6 mm |
| Height | 34.6 mm |
| Length | 53 mm |
| Diameter | 34.6 mm |
| Wrench size | 30 mm |
| Wrench size for mounting | 30 mm |
| Dimensions of slip-on connection | 4.8 x 0.8 mm |
Electrical properties
| Rated surge voltage (II/2) | 8 kV |
| Rated surge voltage (III/2) | 8 kV |
| Rated surge voltage (III/3) | 6 kV |
| Rated current | 20 A |
| Contact resistance | < 3 mΩ |
| Rated voltage (II/2) | 1000 V |
| Rated voltage (III/2) | 1000 V |
| Rated voltage (III/3) | 690 V |
| Nominal voltage UN | 690 V AC |
| Nominal voltage UN | 690 V DC |
| Nominal current IN | 20 A |
Mechanical data
| Insertion/withdrawal cycles | max. 50 |
Material specifications
| Color | black (RAL 9005) |
| Material Housing | PA |
| Material Contact | Cu |
| Material Contact surface | Silver-plated |
| Flammability rating according to UL 94 | V0 |
| Material wire insulation | PVC/PE/TPE/rubber |
Cable/line
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | VDE 0295 class 1 to 6/min. 0.15 mm |
| Wire diameter including insulation | 2 mm ... 3.8 mm |
| Position marking | 1, 2, 3, N, PE |
| Material wire insulation | PVC/PE/TPE/rubber |
Mounting
| Mounting Type | Front mounting M25 |
Ambient conditions
| Degree of Protection | IP66 |
| Degree of Protection | IP68 (2 m / 24 h) |
| Degree of Protection | IP69K |
| Ambient Temperature (Operation) | -40 °C ... 100 °C |
| Temperature when conductor connected | -5 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Accessories
CP-QPD 5X2,5 - Coding profile, red, for insertion into the 5-pos. QUICKON dome and connector, can be positioned in 72° increments.
