Official DistributorSKU
MPN
HC-Q04-I-CT-F
Weight
0.01 kg
Series HC-Q

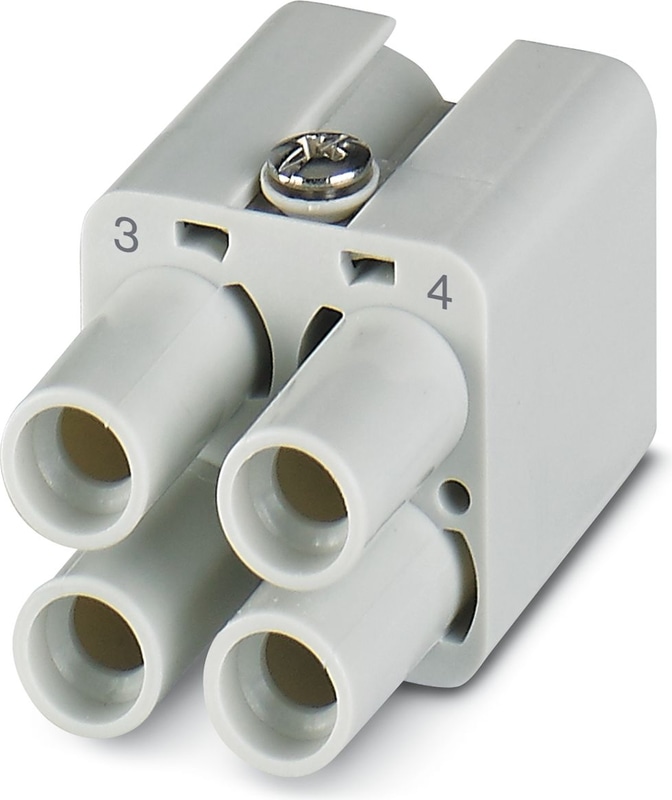

HC-Q04-I-CT-F - Contact insert
Contact insert, number of positions: 4, size: D7, number of connections per position: 1, Socket, Crimp connection, 830 V, 40 A, 1.5 mm2 ... 6 mm2, application: Power, Only suitable for plastic housings, four coding options
Accessories
CRIMPFOX-TC 4 - Crimping pliers, for CK 1,6-ED..., CK 2,5-ED..., CK 4,0-ED... turned contacts, 4 marked die stations, unlockable pressure lock, lateral entry, incl. positioning tool
CRIMPFOX-TC 10 - Crimping pliers, for turned contacts with a pin diameter of 4.0 mm, two marked die stations, pressure lock can be released, lateral entry, incl. positioning help
HC-D 7-DS-IP65 - Sealing screw, size: Countersunk head, IP67, replacement part for D7 size HEAVYCON housing
Crimp contact, contact diameter: 4 mm, turned, Socket, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 1.5 mm2 ... 1.5 mm2, AWG 16- CK4,0-ED-2,50BU AG - Crimp contact, contact diameter: 4 mm, turned, Socket, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 2.5 mm2 ... 2.5 mm2, AWG 14
- CK4,0-ED-4,00BU AG - Crimp contact, contact diameter: 4 mm, turned, Socket, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 4 mm2 ... 4 mm2, AWG 12
- CK4,0-ED-6,00BU AG - Crimp contact, contact diameter: 4 mm, turned, Socket, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 6 mm2 ... 6 mm2, AWG 10
- CK4,0-ED-10,00BU AG - Crimp contact, contact diameter: 4 mm, turned, Socket, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 10 mm2 ... 10 mm2, AWG 8
Why Proax for Phoenix Contact 1419899?
Proax is an authorized distributor of Phoenix Contact 1419899 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
Recommended
HC-Q04-I-CT-M - Contact insert, number of positions: 4, size: D7, number of connections per position: 1, Pin, Crimp connection, 830 V, 40 A, 1.5 mm2 ... 6 mm2, application: Power, Only suitable for plastic housings, four coding options
HC-Q05-I-CT-F - Contact insert, number of positions: 5+PE, size: D7, number of connections per position: 1, Socket, Crimp connection, 230 V/400 V, 20 A, 0.5 mm2 ... 2.5 mm2, application: Power
HC-Q03-I-CT-F - Contact insert, number of positions: 3+PE, size: D7, number of connections per position: 1, Socket, Crimp connection, 400 V, 40 A, 1.5 mm2 ... 6 mm2, application: Power
HC-Q05-I-CT-M - Contact insert, number of positions: 5+PE, size: D7, number of connections per position: 1, Pin, Crimp connection, 230 V/400 V, 20 A, 0.5 mm2 ... 2.5 mm2, application: Power
Contact insert, number of positions: 3+PE, size: D7, number of connections per position: 1, Pin, Crimp connection, 400 V, 40 A, 1.5 mm2 ... 6 mm2, application: Power
HC-Q02-I-CT-F - Contact insert, number of positions: 2+PE, size: D7, number of connections per position: 1, Socket, Crimp connection, 400 V, 40 A, 1.5 mm2 ... 6 mm2, application: Power
Contact insert, number of positions: 2+PE, size: D7, number of connections per position: 1, Pin, Crimp connection, 400 V, 40 A, 1.5 mm2 ... 6 mm2, application: Power
HC-Q07-I-CT-F - Contact insert, number of positions: 7+PE, size: D7, number of connections per position: 1, Socket, Crimp connection, 400 V, 12 A, 0.14 mm2 ... 2.5 mm2
HC-Q07-I-CT-M - Contact insert, number of positions: 7+PE, size: D7, number of connections per position: 1, Pin, Crimp connection, 400 V, 12 A, 0.14 mm2 ... 2.5 mm2
HC-Q12-I-CT-F - Contact insert, number of positions: 12+PE, size: D7, number of connections per position: 1, Socket, Crimp connection, 400 V, 12 A, 0.14 mm2 ... 2.5 mm2
HC-Q12-I-CT-M - Contact insert, number of positions: 12+PE, size: D7, number of connections per position: 1, Pin, Crimp connection, 400 V, 12 A, 0.14 mm2 ... 2.5 mm2
