Official DistributorSKU
MPN
HC-Q03-I-CT-M
Weight
0.013 kg
This product is Not Cancellable/Not Returnable
Series HC-Q

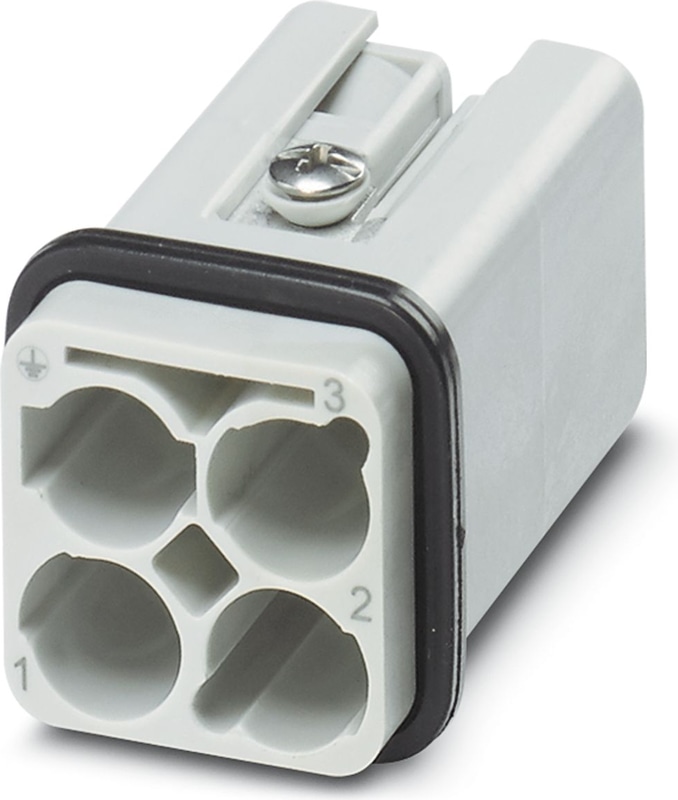

HC-Q03-I-CT-M - Contact insert
Contact insert, number of positions: 3+PE, size: D7, number of connections per position: 1, Pin, Crimp connection, 400 V, 40 A, 1.5 mm2 ... 6 mm2, application: Power
- Shock and vibration-resistant in accordance with DIN EN 61373
Documents
Technical Specifications
Notes
| General | For HC-D7 housing, crimp contacts CK 4,0. Crimp contacts not included in scope of supply. |
| General | Connectors may be operated only when there is no load/voltage. |
Mounting
| Assembly note | To ensure correct use, installation in housing with IP54 protection or better is required |
Product properties
| Series | HC-HS |
| Application | Power |
| Type | D7 |
| Number of Positions | 3 |
| Connection profile | 3+PE |
| Contact numbering | 1 - 2 |
| Number of connections per position | 1 |
| Contact material type | turned |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Dimensions
| Width | 21 mm |
| Height | 40 mm |
| Length | 21 mm |
Mechanical characteristics
| Contact diameter | 4 mm |
Connection technology
| Connection technology | Crimp connection |
| Connection technology | Crimp connection (PE contact) |
| Number of connections per position | 1 |
| Connection in acc. with standard | IEC / EN |
Conductor connection
| Conductor Cross Section | 1.5 mm² ... 6 mm² |
| Connection cross section AWG | 16 ... 10 |
| Tightening torque | 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) |
| Stripping length of the individual wire | 9 mm (2,5 mm² ... 6,0 mm²) |
| Stripping length of the individual wire | 11 mm (for 10 mm²) |
Electrical properties
| Rated voltage (III/3) | 400 V |
| Rated surge voltage | 6 kV |
| Rated current | 40 A |
Mechanical data
| Insertion/withdrawal cycles | ≥ 500 |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR, conductive |
| Contact Material | Copper alloy |
| Contact surface material | Ag |
| Contact carrier material | PC |
| Standards/regulations | PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 125 °C (including heating up of contacts) |
Standards and Regulations
| Constructional and testing regulations | DIN VDE 0627/86 |
| Constructional and testing regulations | DIN VDE 0110/02.79 |
| Constructional and testing regulations | DIN VDE 0110-1/04.97 |
| Constructional and testing regulations | IEC 60664-1, DIN IEC 60512 |
| Constructional and testing regulations | IEC 60352 |
| Tests | DIN VDE 0627/86 |
| Tests | DIN VDE 0110/02.79 |
| Tests | DIN VDE 0110-1/04.97 |
| Tests | IEC 60664-1, DIN IEC 60512 |
| Tests | IEC 60352 |
Testing
| Standards/regulations | PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
Accessories
CRIMPFOX-TC 4 - Crimping pliers, for CK 1,6-ED..., CK 2,5-ED..., CK 4,0-ED... turned contacts, 4 marked die stations, unlockable pressure lock, lateral entry, incl. positioning tool
CRIMPFOX-TC 10 - Crimping pliers, for turned contacts with a pin diameter of 4.0 mm, two marked die stations, pressure lock can be released, lateral entry, incl. positioning help
HC-D 7-DS-IP65 - Sealing screw, size: Countersunk head, IP67, replacement part for D7 size HEAVYCON housing
CK4,0-ED-1,50ST AG - Crimp contact, contact diameter: 4 mm, turned, Pin, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 1.5 mm2 ... 1.5 mm2, AWG 16- CK4,0-ED-2,50ST AG - Crimp contact, contact diameter: 4 mm, turned, Pin, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 2.5 mm2 ... 2.5 mm2, AWG 14
- CK4,0-ED-4,00ST AG - Crimp contact, contact diameter: 4 mm, turned, Pin, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 4 mm2 ... 4 mm2, AWG 12
- CK4,0-ED-6,00ST AG - Crimp contact, contact diameter: 4 mm, turned, Pin, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 6 mm2 ... 6 mm2, AWG 10
- CK4,0-ED-10,00ST AG - Crimp contact, contact diameter: 4 mm, turned, Pin, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 10 mm2 ... 10 mm2, AWG 8
