1415169
Official DistributorSKU
PHX1415169
MPN
G-ESISEC-M50-L68L-NEPDS-S
Weight
0.368 kg
Series G-ESISEC-M

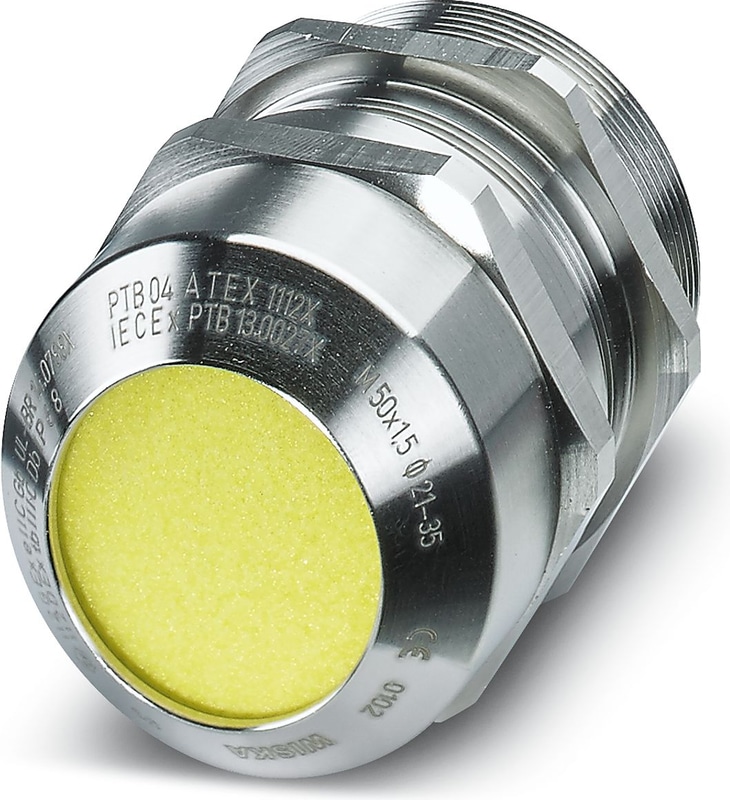

G-ESISEC-M50-L68L-NEPDS-S - Cable gland
Cable gland, material for screw connection: Brass, nickel-plated, application: Ex, external cable diameter 21 mm ... 35 mm, shielding: yes, connecting thread: M50 x 1.5, color: silver, with O-ring
- Dust protection during storage and transport provided by a dust cap.
- Weatherproof sealing material
- Halogen-free
Technical Specifications
Product properties
| Application | Ex |
| No. of conductors | 1 |
| Manufacturer | WISKA |
| Manufacturer Designation | EMSKE-L 50 EMV-Z |
| Shielded | yes |
Connection data
| Tightening torque | ... 30 Nm |
Ex data
| Cable types that can be used | for unarmored cables |
| Suited for EX-applications | yes |
Dimensions
| Length | 57 mm |
| Length of the connecting thread | 15 mm |
| Hole diameter | 50.1 mm ... 50.3 mm |
| Wrench size, union nut | 55 mm |
| Wrench size, support | 55 mm |
| Hexagon angular dimension | 61 mm |
| Thread type connection side | M50 x 1.5 |
| Thread pitch | 1.5 mm |
Material specifications
| Color | Brass |
| Material Compression ring | PA |
| Seal material cable seal | EPDM |
| Material for screw connection | Brass, nickel-plated |
Cable/line
| External Cable Diameter | 21 mm ... 35 mm |
Ambient conditions
| Degree of Protection | IP66 |
| Degree of Protection | IP68 (5 bar / 0.5 h) |
| Ambient Temperature (Operation) | -40 °C ... 75 °C (static) |
Approvals
| ATEX | II 2 G/D EEx e II IP68 |
| IECEx | Ex e IIC Gb, Ex tb IIIC Db |
Mounting
| Assembly instructions | Mounting the screw connection:- Mount cable gland support- Strip outer cable sheath. Expose around 7 mm of the cable shield.- Push the outer cone over the braided shield- Push the inner cone under the shield- Insert both, together with the cable, in the mounted screw connection support- Tighten union nut with the required torque |
Accessories
Why Proax for Phoenix Contact 1415169?
Proax is an authorized distributor of Phoenix Contact 1415169 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
