1415111
Official DistributorSKU
PHX1415111
MPN
G-ESIS-M40-M68L-PEPDS-BK
Weight
0.072 kg
Series G-ESIS-M

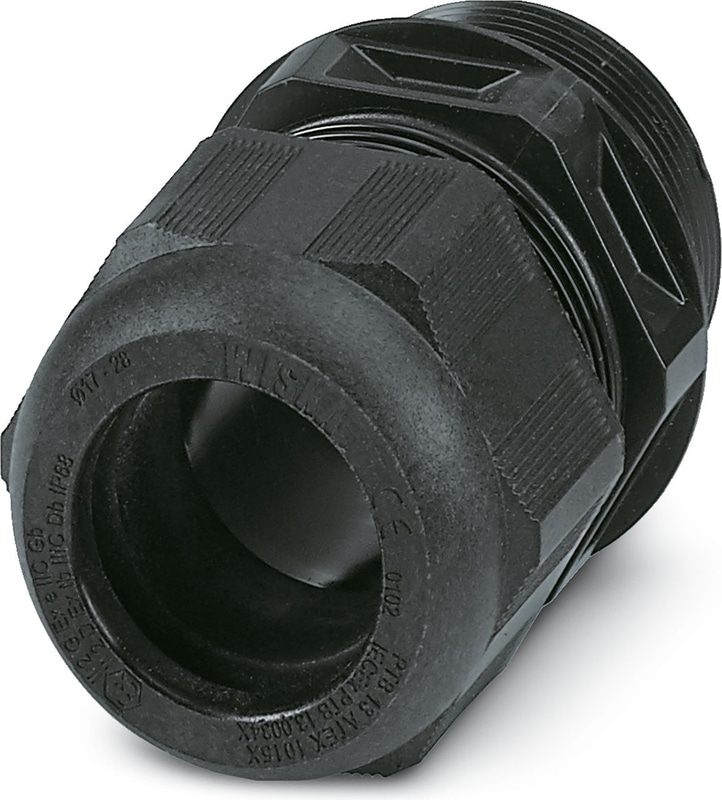

G-ESIS-M40-M68L-PEPDS-BK - Cable gland
Cable gland, material for screw connection: PA, application: Ex, external cable diameter 17 mm ... 28 mm, shielding: no, connecting thread: M40 x 1.5, color: jet black, with flat gasket
- Glow-wire test: 750°C
- Weatherproof sealing material
- Halogen-free
Technical Specifications
Product properties
| Application | Ex |
| No. of conductors | 1 |
| Manufacturer | WISKA |
| Manufacturer Designation | ESKE/1-L-e 40 |
| Shielded | no |
Connection data
| Tightening torque | ... 11 Nm |
Ex data
| Cable types that can be used | for unarmored cables |
| Suited for EX-applications | yes |
Dimensions
| Length | 58 mm |
| Length of the connecting thread | 18 mm |
| Hole diameter | 40.1 mm ... 40.3 mm |
| Wrench size, union nut | 46 mm |
| Wrench size, support | 46 mm |
| Hexagon angular dimension | 51 mm |
| Thread type connection side | M40 x 1.5 |
| Thread pitch | 1.5 mm |
Material specifications
| Color | black (RAL 9005) |
| Material Screw connection | PA |
| Seal material cable seal | EPDM |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 750 |
| Material for screw connection | PA |
Cable/line
| External Cable Diameter | 17 mm ... 28 mm |
| Halogen-free | yes |
Ambient conditions
| Degree of Protection | IP66 |
| Degree of Protection | IP68 (5 bar / 0.5 h) |
| Ambient Temperature (Operation) | -40 °C ... 75 °C (static) |
Approvals
| ATEX | II 2 G Ex e IIC Gb, II 2 D Ex tb IIIC Db |
| IECEx | Ex e IIC Gb, Ex tb IIIC Db |
Accessories
Why Proax for Phoenix Contact 1415111?
Proax is an authorized distributor of Phoenix Contact 1415111 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 5 |
