Name: 1415117
Brand: Phoenix Contact
SKU: PHX1415117
Price: 3.7800 CAD
Availability: InStock

Official Distributor

By Phoenix Contact

SKU

MPN

G-ESIS-M20-S68L-PEPDS-BL

Weight

0.018 kg

This product is Not Cancellable/Not Returnable

Series G-ESIS-M

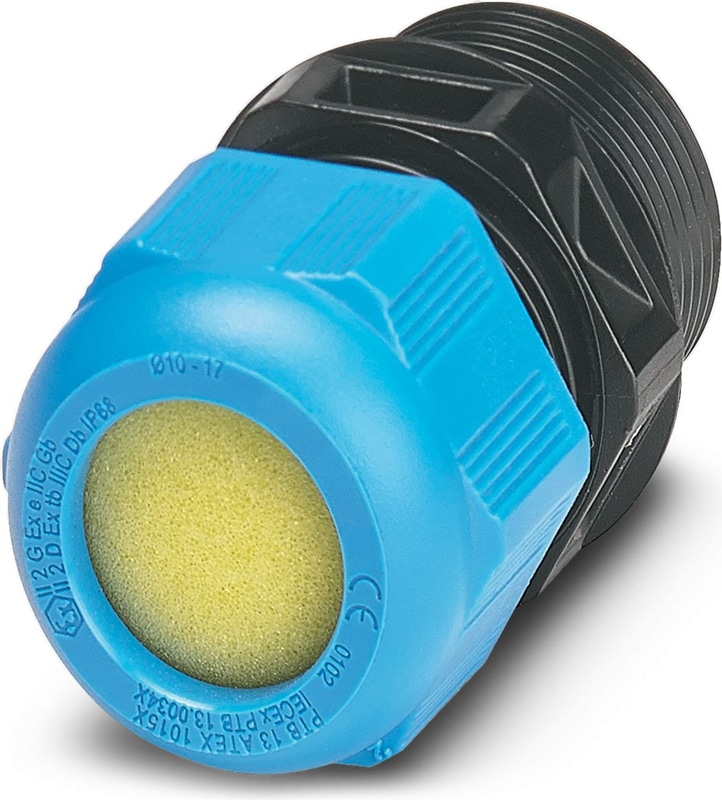

G-ESIS-M20-S68L-PEPDS-BL - Cable gland

Cable gland, material for screw connection: PA, application: Ex, external cable diameter 7 mm ... 13 mm, shielding: no, connecting thread: M20 x 1.5, color: black/blue, with flat gasket

Glow-wire test: 750°C
Weatherproof sealing material
Halogen-free

Product properties

Application	Ex
No. of conductors	1
Manufacturer	WISKA
Manufacturer Designation	ESKE/1-L-i 20
Shielded	no

Connection data

Tightening torque

... 2.3 Nm

Ex data

Cable types that can be used	for unarmored cables
Suited for EX-applications	yes

Dimensions

Length	41 mm
Length of the connecting thread	15 mm
Hole diameter	20.1 mm ... 20.3 mm
Wrench size, union nut	24 mm
Wrench size, support	24 mm
Hexagon angular dimension	28 mm
Thread type connection side	M20 x 1.5
Thread pitch	1.5 mm

Material specifications

Material Screw connection	PA
Seal material cable seal	EPDM
Glow wire ignition temperature GWIT according to EN 60695-2-13	750
Material for screw connection	PA

Cable/line

External Cable Diameter	7 mm ... 13 mm
Halogen-free	yes

Ambient conditions

Degree of Protection	IP66
Degree of Protection	IP68 (5 bar / 0.5 h)
Ambient Temperature (Operation)	-40 °C ... 75 °C (static)

Approvals

ATEX	II 2 G Ex e IIC Gb, II 2 D Ex tb IIIC Db
IECEx	Ex e IIC Gb, Ex tb IIIC Db

1411215
A-INL-M20-P-BK - Counter nut, for threads M20 x 1.5, color: jet black
