8800330
Official DistributorBy Rittal
SKU
RIT8800330
Weight
1.122 kg
Series Support Bracket TS
TS Support bracket, for direct fixation on TS profile, of PS punched rail 23x23 mm/, PS punched rail 23x23 mm
Supply includes

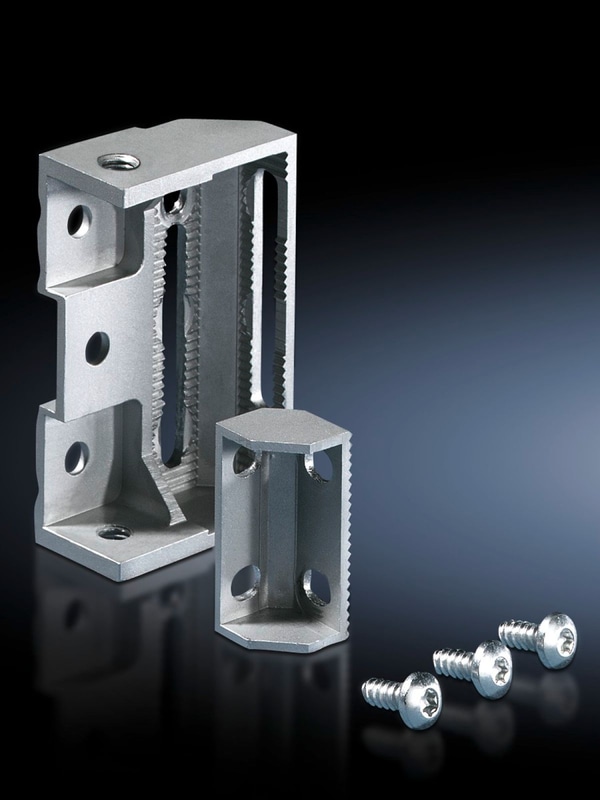

1 set = 1 support bracket, 1 stay, 3 metal screws 5.5 x 13 mm
Support Bracket TS
For the attachment of 23 x 73 mm mounting chassis or 23 x 23 mm punched rails.
Technical Specifications
| Material | Die-cast zinc |
| Installation options | On the vertical TS enclosure section (25 mm hole pattern, 2 mm increments) |
| Suitable for enclosure type | TS |
| Packaging unit | 6 pc(s). |
| Weight/packaging unit | 1.122 kg |
| Customs tariff number | 73182900 |
| EAN | 4028177230958 |
| ETIM 7.0 | EC002625 |
| ECLASS 8.0 | 27189234 |
