4183000
Official DistributorBy Rittal
SKU
RIT4183000
Weight
2.088 kg
Series Support Bracket PS

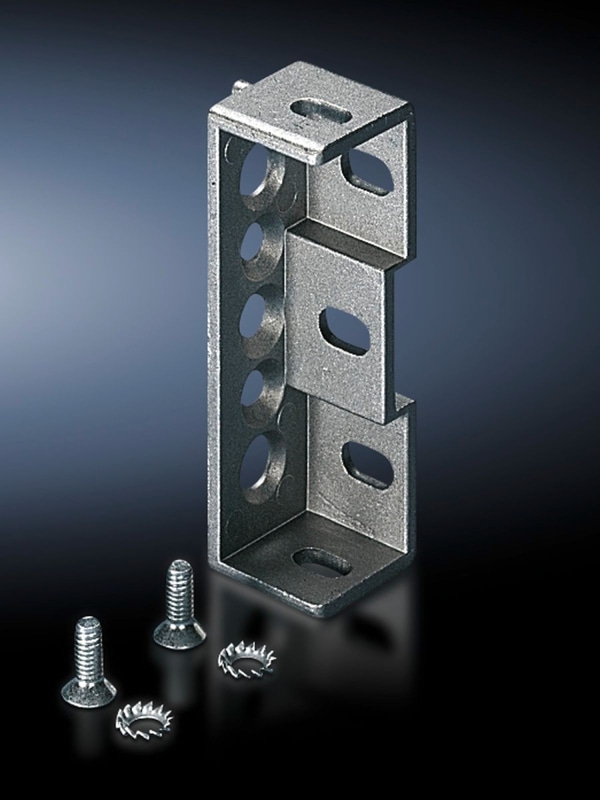

SZ Support bracket, for fastening of PS mounting rail 23x23 mm, PS punched rail 23x23 mm, via adaptor rail for PS compatibility
Supply includes
1 set = 1 support bracket, 2 countersunk screws, 2 serrated lock washers
Support Bracket PS
For the attachment of punched sections without mounting flange 23 x 73 mm or punched rails 23 x 23 mm.
Technical Specifications
| Material | Die-cast zinc |
| Installation options | On the vertical TS, VX SE enclosure section via snap-on nuts TS 8800.806 or adapter rail for VX compatibility |
| Suitable for enclosure type | TS |
| Packaging unit | 24 pc(s). |
| Weight/packaging unit | 2.088 kg |
| Customs tariff number | 73182900 |
| EAN | 4028177093386 |
| ETIM 7.0 | EC002625 |
| ECLASS 8.0 | 27189234 |
